Fixed-type switchgear

XGN Fixed-Type Switchgear for Indoor AC Box-Type MV and HV Rooms

XGN fixed-type switchgear covers indoor AC box-type cabinets for 3.6 kV, 7.2 kV, 10 kV, 12 kV and 40.5 kV power rooms. Match XGN17, XGN2 or XGN66 to the voltage class, rated current, short-circuit duty, fixed cabinet layout and room dimensions.

3.6 / 7.2 / 10 / 12 / 40.5 kVFixed cabinetIndoor AC box type
Request XGN Switchgear Quote
Series and ratings

XGN Fixed-Type Switchgear Series for 12 kV and 40.5 kV Rooms

Compare XGN17, XGN2 and XGN66 by voltage class, cabinet structure, rated current, breaking duty, dimensions and indoor room fit before requesting drawings.

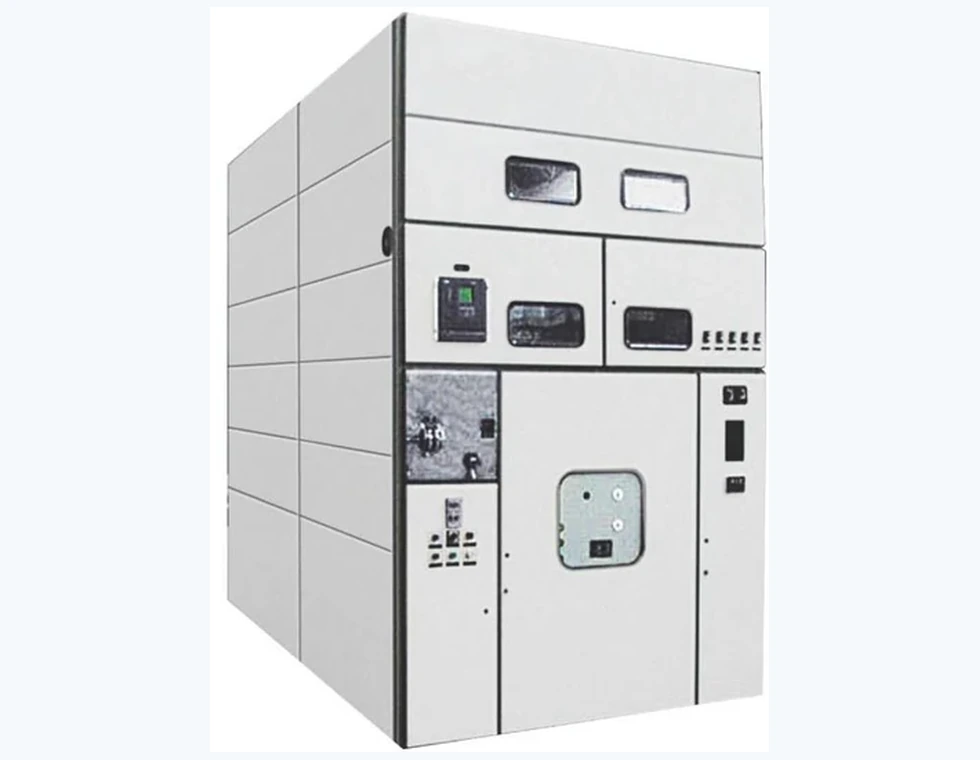

XGN17 40.5 kV fixed high-voltage switchgear cabinet
40.5 kV fixed HV cabinet

XGN17-40.5 Fixed High-Voltage Switchgear

Indoor AC box-type fixed high-voltage switchgear for three-phase AC 50/60 Hz indoor power rooms.

40.5 kVUp to 2000 A25/31.5 kA

Fits indoor HV rooms where 40.5 kV fixed cabinet duty, IP2X enclosure and large cabinet dimensions are acceptable.

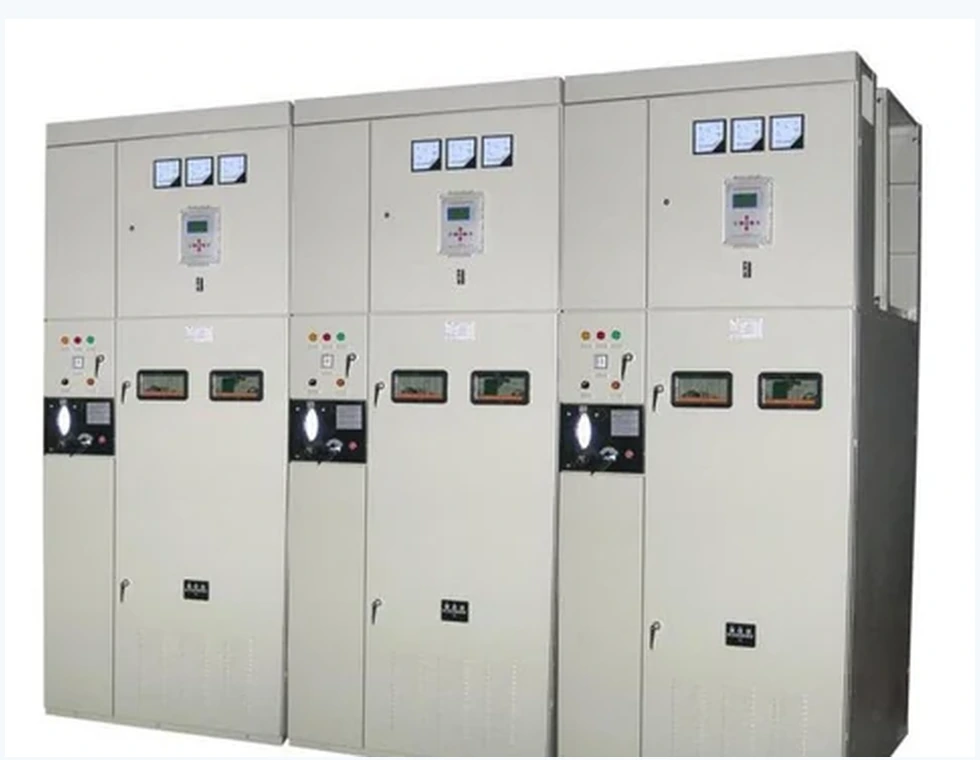

XGN2 fixed-type indoor AC box switchgear lineup
3.6/7.2/12 kV fixed cabinet

XGN2-12 Fixed Box-Type Switchgear

Indoor AC box-type fixed switchgear with independent functional rooms for 3.6/7.2/12 kV systems.

3.6/7.2/12 kV630-3150 ASingle busbar section

Fits indoor MV rooms that need a fixed cabinet with independent functional rooms, busbar structure review and IP2X enclosure.

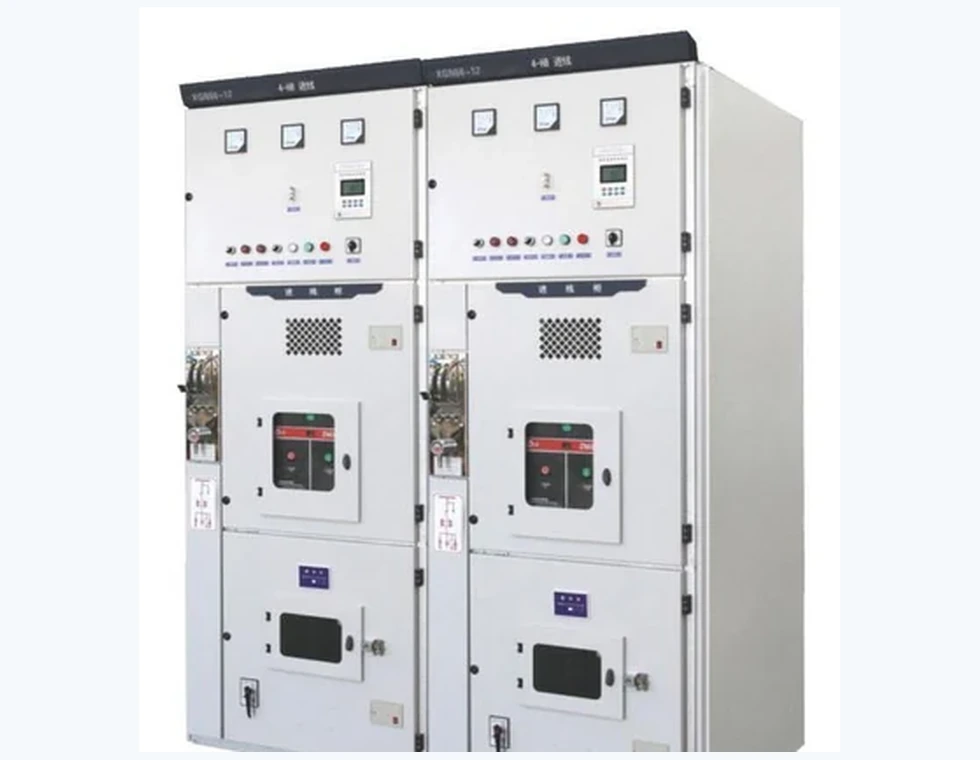

XGN66 12 kV fixed box-type switchgear cabinet
10/12 kV compact fixed cabinet

XGN66-12 Compact Fixed Box-Type Switchgear

Compact indoor AC box-type fixed switchgear for 10/12 kV fixed-cabinet rooms.

10/12 kV630 A31.5 kA

Fits compact indoor 10/12 kV rooms and box-type transformer substations where 630 A fixed cabinet duty is enough.

40.5 kV fixed HV cabinet

XGN17-40.5 Fixed High-Voltage Switchgear Specifications

Indoor AC box-type fixed high-voltage switchgear for three-phase AC 50/60 Hz indoor power rooms.

ApplicationPower plants, substations, distribution rooms, industrial buildings and commercial buildings
Rated voltage40.5 kV
Maximum rated current2000 A
Rated breaking current25/31.5 kA
Rated making current63/80 kA peak
Limiting through current peak63/80 kA
4 s thermal stability current25/31.5 kA
Rated insulation levelPower-frequency withstand 95 kV; lightning impulse withstand 185 kV
Isolating fracture insulationPower-frequency withstand 110 kV; lightning impulse withstand 215 kV
Boundary dimension1918 x 3250 x 3125 mm
Protection levelIP2X
WeightAbout 1500 kg
StandardGB3906
Construction notesLarge internal space, convenient maintenance and fixed box-type cabinet structure
3.6/7.2/12 kV fixed cabinet

XGN2-12 Fixed Box-Type Switchgear Specifications

Indoor AC box-type fixed switchgear with independent functional rooms for 3.6/7.2/12 kV systems.

ApplicationPower plant or station, substation or distribution room, industrial facilities and commercial buildings
Rated voltage3.6/7.2/12 kV
Rated current630-3150 A
Rated short-circuit breaking current20/25/31.5 kA
Short-circuit making current peak40/50/80/100 kA
Peak withstand current40/50/80/100 kA
Short-time withstand current20/25/31.5/40 kA
Duration4 s
1 min insulation levelInterphase/earth/fracture 24/32/42 kV and 28/38/48 kV
Impulse insulation levelInterphase/earth/fracture 40/60/75 kV and 46/70/85 kV
Protection levelIP2X
Structural styleSingle busbar section; single busbar with bypass
OperationElectromagnetic or spring stored energy
Dimensions1200 x 1300 x 2650 mm for >=2000 A; 1100 x 1200 x 2650 mm general cabinet
WeightAbout 1000 kg
StandardGB3906
Construction notesIndependent function rooms with fixed cabinet operation and maintenance access
10/12 kV compact fixed cabinet

XGN66-12 Compact Fixed Box-Type Switchgear Specifications

Compact indoor AC box-type fixed switchgear for 10/12 kV fixed-cabinet rooms.

ApplicationPower plant or station, substation or distribution room, industrial and commercial buildings, box-type transformer substation
Rated voltage10 kV
Maximum working voltage12 kV
Frequency50 Hz
Power-frequency withstand42 kV interphase/earth; 48 kV isolating fracture
Lightning impulse withstand75 kV; 85 kV isolating fracture
Main bus rated current630 A
Rated current630 A
Mechanical life5000 operations
No-load transformer breaking capacity1250 kVA
Thermal current20 kA for 4 s
Dynamic current50 kA peak
Making current50 kA peak
Fuse maximum current100 A
Transfer current1500/2000 A
Short-circuit breaking current31.5 kA
Maximum transformer capacity1250 kVA
StandardGB3906
Construction notesCompact fixed-cabinet structure with 10/12 kV operation data
01

Voltage class

3.6/7.2/10/12/40.5 kV

XGN2 fits 3.6/7.2/12 kV work, XGN66 covers compact 10/12 kV duty and XGN17 covers 40.5 kV indoor HV rooms.

02

Rated current

630 A to 3150 A

For higher current classes, check XGN2. XGN66 covers compact 630 A duty and XGN17 covers 40.5 kV projects up to 2000 A.

03

Fault level

20/25/31.5/40 kA classes

Match breaking current, making current, peak withstand and 4 s thermal current to the protection study.

04

Fixed cabinet layout

Box-type indoor cabinet

Confirm that fixed cabinet maintenance fits the room before choosing XGN instead of KYN28 withdrawable switchgear.

05

Busbar structure

Single busbar or bypass

XGN2 includes single busbar section and single busbar with bypass structures. Confirm the busbar plan before drawing release.

06

Room and cable interface

Dimensions, trench and access

Check cabinet width, depth, height, cable entry, foundation reference and operation aisle with the project room layout.

Site conditions

XGN Fixed-Type Switchgear Application and Installation Conditions

Install XGN fixed-type switchgear in indoor MV or HV rooms where a fixed AC box-type cabinet suits the operating and maintenance plan.

01

Power plants and stations

Select XGN17, XGN2 or XGN66 where fixed indoor switchgear is specified for plant or station receiving and distribution.

02

Substations and distribution rooms

Fit this cabinet type to substation and distribution-room duty after confirming voltage class, current duty and operation aisle.

03

Industrial and commercial buildings

Apply fixed cabinets in indoor building power rooms where fixed maintenance access is acceptable.

04

Box-type transformer substations

XGN66-12 fits compact 10/12 kV fixed switchgear packages for box-type transformer substations.

Delivery controls

XGN Fixed-Type Switchgear Drawings, Routine Tests and Packing

After the XGN model, voltage class and fault level are fixed, confirm drawings, routine checks and packing method before production release. For broader fixed cabinet file review, download XGN fixed-type switchgear catalog PDFs.

01

General arrangement drawing

Cabinet lineup, dimensions, foundation reference, cable entry, busbar position, door swing and room clearance.

02

Single-line and control drawings

Incoming and outgoing circuits, breaker or load-switch duty, CT/PT, metering, protection and terminal wiring.

03

Routine verification

Power-frequency withstand, insulation, mechanical operation, interlock, nameplate, earthing and protection-degree checks.

04

Packing and handling

Cabinet split, lifting point, moisture protection, packing marks, pallet or wooden case and destination standard.

When should XGN be selected instead of KYN28?

Select XGN when a fixed AC box-type cabinet fits the room, maintenance method and switching duty. Select KYN28 when the project needs withdrawable VCB truck operation.

Can XGN cover both 12 kV and 40.5 kV projects?

Yes. XGN2 and XGN66 support 12 kV class selection, while XGN17 supports 40.5 kV fixed high-voltage switchgear. Keep the selected model tied to the project voltage and fault level.

What is the difference between XGN2 and XGN66?

XGN2 covers 3.6/7.2/12 kV with 630-3150 A current classes and busbar structure options. XGN66 is a compact 10/12 kV fixed cabinet with 630 A duty and 31.5 kA short-circuit breaking current.

Is XGN suitable for outdoor installation?

The supplied XGN17, XGN2 and XGN66 data describes indoor AC box-type switchgear. Outdoor installations should be quoted as a separate enclosure or substation package.

Which details are needed before XIYA POWER confirms the XGN model?

Send the single-line diagram, voltage class, rated current, breaking current, short-time withstand current, cabinet function, CT/PT requirements, metering, protection, cable entry, room layout, quantity, destination standard and Incoterms.

Engineering reviewReviewed July 7, 2026

Reviewed by XIYA POWER sales engineering for XGN17-40.5, XGN2-12 and XGN66-12 selection use.

Selection dataVoltage, current and fault level

Final cabinet choice depends on voltage class, rated current, breaking duty, busbar structure and room layout.

DocumentsGA, SLD and control drawings

Production release uses cabinet dimensions, single-line and control drawings, routine test checklist and packing method.

Quotation ruleProject-based scope

No standard cabinet package is assumed; quotation follows model, configuration, quantity, destination and Incoterms.

Project-based quotation

Request an XGN Fixed-Type Switchgear Quote

Send the single-line diagram, voltage class, rated current, fault duty, cabinet function, room layout, quantity and destination standard. XIYA POWER will confirm the XGN option, drawing scope, packing method and quotation. For procurement review, check certificates, test reports and RFQ forms.
