Medium Voltage Single-pole Isolation Switch

GW9-12/24(W) single-pole outdoor disconnecting switch for 50/60 Hz no-load isolation. Core GW9 duty covers 6.6-24 kV systems, with related single-pole rating and dimension references kept below.

Voltage classes
Core GW9: 6.6-24 kV; related tables: 15/24/35/36 kV
Rated current range
200 A to 1250 A by source table
View Specifications Request Quote
Medium voltage single-pole isolation switch product range

Service conditions

Outdoor application limits for the GW9 single-pole switch family.

Operating conditions

ItemValue
Altitude<= 1000 m
Ambient temperature-25 C to +40 C
Wind speed<= 35 m/s
Earthquake intensity<= 8 degree
Normal application environmentFree from chemical aggravation, dust, volatile matter and caustic matter

Voltage range notes

  • Product identity: GW9-[blank](W) Series Outdoor High-voltage Disconnecting Switch.
  • Core duty: outdoor AC no-load isolation for 50/60 Hz, 6.6-24 kV systems.
  • 35 kV rows come from the GW12-33kV additional model table; 36 kV rows come from the GWD2 dimension table.
  • The 33 kV porcelain product photo is visual material only; electrical selection follows the rating table rows.
  • Model suffixes such as /1000 and /1200 are kept exactly as shown in the supplied tables; confirm the final model code during quotation.

GW9 rating data

Core GW9-12/24(W) rows stay separate from related model groups and additional variants to avoid treating every voltage as the same model family.

GW9-12/24(W) main technical specification

ModelRated voltageRated current4s short-time withstand currentPeak withstand currentLightning impulse phase-to-earthLightning impulse across open contacts1 min power-frequency withstand wet
GW9(W)-12/24/40012/24 kV400 A12.5 kA31.5 kA75/125 kV85/145 kV34/60 kV
GW9(W)-12/24/63012/24 kV630 A20 kA50 kA75/125 kV85/145 kV34/60 kV
GW9(W)-12/24/100012/24 kV1250 A20 kA50 kA75/125 kV85/145 kV34/60 kV

GW9 and HGW9 model groups

GroupTypesRated voltageRated current range4s heat steady currentShock steady currentImpulse withstandPower-frequency withstand
HGW9-12(W)kVHGW9-12/200, /400, /600, /800, /1000, /120012 kV200, 400, 600, 800, 1000, 1250 A12500 A31500 A75/85 kV38/42 kV
GW9-12(W)kVGW9-12/200, /400, /600, /800, /1000, /120012 kV200, 400, 600, 800, 1000, 1250 A12500 A31500 A75/85 kV38/42 kV
GW9-15kVGW9-15/200, /400, /600, /800, /1000, /120015 kV200, 400, 600, 800, 1000, 1250 A12500 A31500 A75/85 kV38/42 kV
HGW9-12THGW9-12T/400, /600, /800, /1000, /120012 kV400, 600, 800, 1000, 1250 A12500 A31500 A75/85 kV38/42 kV
HGW9-24kVHGW9-24/400, /600, /800, /1000, /120024 kV400, 600, 800, 1000, 1250 A12500 A31500 A75/85 kV38/42 kV

Additional model variants

GroupRated voltageRated current4s heat steady currentShock steady currentImpulse withstandPower-frequency withstand
GWD1-15kV15 kV630 A20 kA50 kA125 kV45 kV
GWXY10-15kV15 kV630 A20 kA50 kA125 kV45 kV
GW11-24kV24 kV400 A14 kA40 kA150 kV65 kV
GW11-24kV24 kV630 A20 kA50 kA150 kV65 kV
GW10-15kV15 kV400 A14 kA40 kA150 kV65 kV
GW10-15kV15 kV630 A20 kA50 kA150 kV65 kV
GW12-33kV35 kV400 A14 kA40 kA170 kV70 kV
GW12-33kV35 kV630 A20 kA50 kA170 kV70 kV

Dimensions and drawing notes

Outline drawing values and GWD2 dimensions are grouped for layout review.

GW9-12/630 outline drawing values

DrawingVisible values
GW9-12/630 outdoor disconnect switch outline dimension>= 190 open distance; 85 deg +/- 1 deg operating angle; 341 mm height reference; 240/440 mm base reference; 3-dia 18 holes; 220 mm hole spacing; 25 mm edge reference

GWD2 dimension table

Maximum voltageBILNominal currentTransient currentABCD
15 kV95 kV200/630 A16 kA/1s305270580186
15 kV95 kV630 A25 kA/1s305313595230
15 kV110 kV200/630 A16 kA/1s381270650186
15 kV110 kV630 A25 kA/1s381313670230
27 kV125 kV200/630 A16 kA/1s381310650228
27 kV125 kV630 A25 kA/1s381340670260
36 kV150 kV630 A25 kA/1s381368670290
36 kV170 kV630 A25 kA/1s381400670316

Structure and product variants

Confirmed structure notes and selected visual variants from the prepared assets.

Structure notes

  • GW9-12/24(W) is a single-pole switch type with normal and anti-pollution versions.
  • Main assembly includes frame, support insulator, conductive part and operating mechanism.
  • Each pole has two blades. A pressure spring and adjusting nut maintain contact pressure near the contactor base.
  • Blade support structure locks after closing to support dynamic and thermal stability under normal or short-circuit conditions.
  • Anti-pollution type is intended for serious pollution areas.

Selected product visuals

AssetVisible dataUse on page
Porcelain clean product imagePorcelain insulator body, blade contact and base hardwareProduct variant visual
Silicone clean product imageSilicone/polymeric insulator variantInsulation material comparison
Product range imageMultiple GW9-style single-pole switch bodiesHero and model-family visual
33 kV porcelain photo referenceHigher-voltage porcelain product body from product materialVisual support; electrical rating follows GW12-33kV / 35 kV table rows
Technical dataModel references and rating tables
Drawing cropsMounting dimensions and layout details where supplied
Product photosPhotos confirm structure and mounting signals

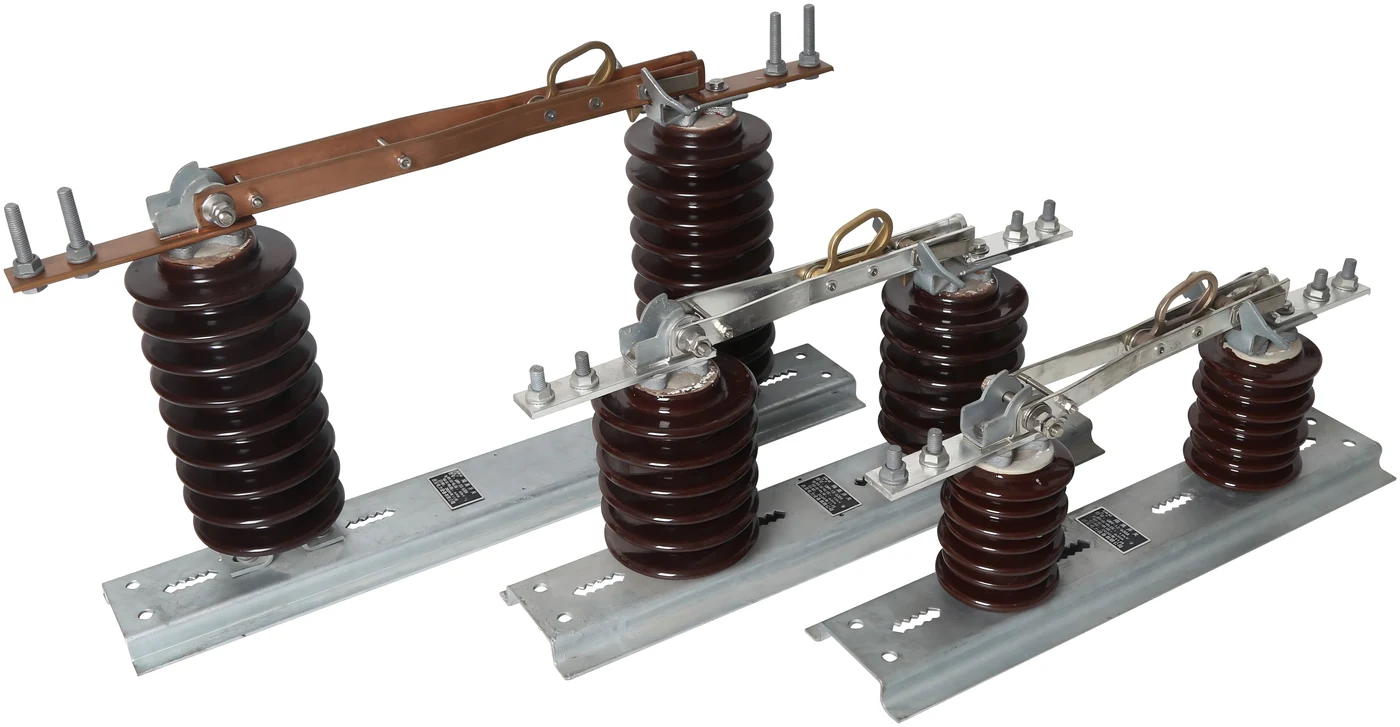

Medium voltage single-pole isolation switch product range
Medium voltage single-pole isolation switch with porcelain insulators on a clean white background
Medium voltage single-pole isolation switch with silicone insulators on a clean white background

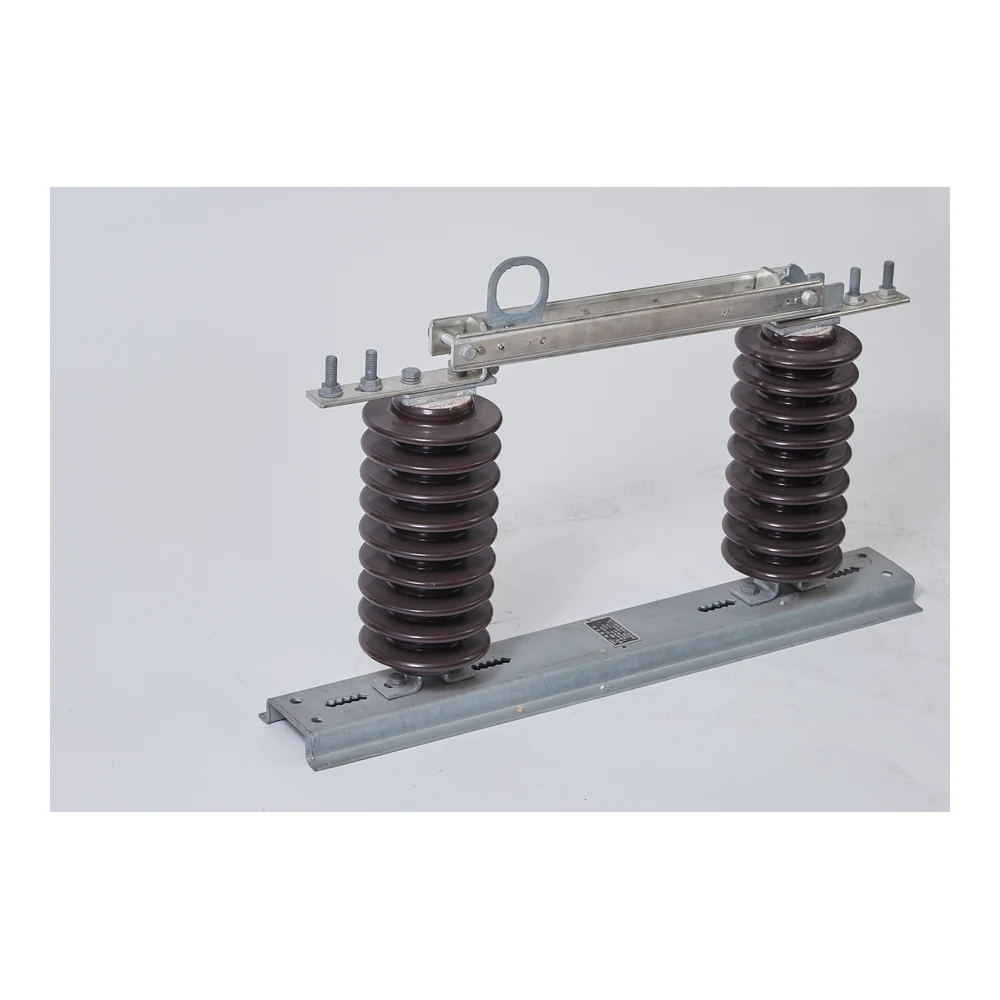

Porcelain single-pole isolation switch product photo from the 33 kV material group

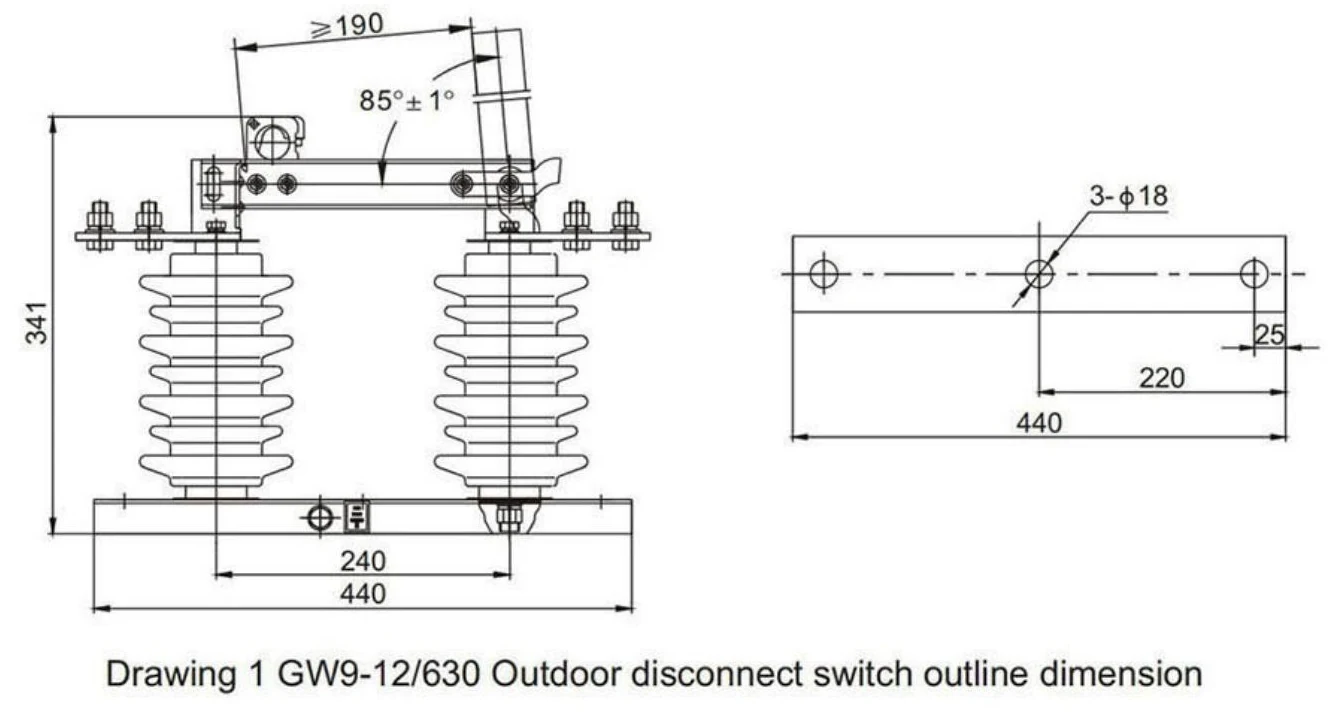

GW9-12/630 outdoor disconnect switch outline dimension drawing
