V-type Structure Horizontal Break Outdoor Isolator

GW5 V-type horizontal-break outdoor HV disconnect switch for 40.5 kV to 252 kV AC systems, with CJ6 motor or CS17 manual operation, optional earthing and installation dimension data.

Voltage classes
40.5 kV to 252 kV references
Rated current range
630 A to 2000 A
View Specifications Request Quote
Three-pole V-type horizontal break outdoor isolator product

Service conditions

Outdoor limits for GW5 V-type horizontal-break installation.

Operating conditions

ItemValue
Altitude<= 1000 m
Ambient temperature-40 C to +40 C
Wind speed<= 34 m/s
Pollution degree<= III
Earthquake intensity<= 8 degree
Ice thickness<= 10 mm

Rating and insulation data

Rated values, withstand levels, creepage distance and weight data remain grouped by electrical class.

Technical specifications

ItemUnitData
Rated voltagekV40.5, 72.5, 126, 145
Rated currentA630, 1250, 1600, 2000
Rated peak withstand currentkA63, 80, 100
4s short-time withstand currentkA25, 31.5, 40
Rated short-time withstand times3/4
Rated power frequencyHz50/60

GW5 technical data table

ItemUnit40.5 kV126 kV252 kV
Rated voltagekV40.5126252
1 min power-frequency withstand voltage, to earthkV95230460
1 min power-frequency withstand voltage, interrupterkV115245460+145
Lightning impulse withstand voltage, to earthkV1855501050
Lightning impulse withstand voltage, interrupterkV2156301050+200
Rated frequencyHz505050
Rated currentA6301250 / 1600 / 20001250 / 1600 / 2000
Rated short-time withstand currentkA2031.5 / 4040
Rated peak withstand currentkA5080 / 100100
Rated short-circuit duration, knife / swords4/24/24/2
Horizontal and vertical terminal loadN75010001000
Horizontal terminal loadN500750750
Vertical forceN75010001000
Creepage distancemm1013-12561813-22483150-3906
Machine lifetimes200020002000
Human actuator model–CD17, CS17GCD17, CS17GCD17, CS17G
Human actuator voltage control loopVAC220, DC110, DC220AC220, DC110, DC220AC220, DC110, DC220
Motor actuator model–CJ6CJ6CJ6
Motor voltageVAC220, AC380, DC220AC220, AC380, DC220AC220, AC380, DC220
Motor actuator voltage control loopVAC220, AC380, DC220AC220, AC380, DC220AC220, AC380, DC220
Closing times6 +/- 16 +/- 16 +/- 1
Product weight, not groundingkg360500800
Product weight, single groundkg390560900
Product weight, double groundkg4306201000

Insulation and mechanism data

ItemUnit40.5 kV126 kV252 kV
1 min power-frequency withstand voltage, to earthkV95230460
1 min power-frequency withstand voltage, interrupterkV115245460+145
Lightning impulse withstand voltage, to earthkV1855501050
Lightning impulse withstand voltage, interrupterkV2156301050+200
Creepage distancemm1013-12561813-22483150-3906
Product weight, not groundingkg360500800
Product weight, single groundkg390560900
Product weight, double groundkg4306201000

Additional shared values

ItemValue
Rated frequency50 Hz
Rated current630, 1250, 1600, 2000 A
Rated short-time withstand current20, 31.5, 40, 40 kA
Rated peak withstand current50, 80, 100, 100 kA
Rated short-circuit duration, knife/sword4/2 s
Machine life2000 operations
Human actuator modelCD17, CS17G
Human actuator voltage control loopAC220, DC110, DC220
Motor actuator modelCJ6
Motor voltageAC220, AC380, DC220
Motor actuator voltage control loopAC220, AC380, DC220
Closing time6 +/- 1 s

Structure and mechanisms

Model code, V-type construction and mechanical terminal load are shown separately for selection review.

Model code

PositionMeaning
GDisconnect switch
WOutdoor
5Design serial number
First blankRated voltage
Second blankSingle earth; D II is double earth
Final blankRated current

Structure notes

  • The disconnect switch is made up of three single phases.
  • Each phase uses a V-type structure with a 50 deg symmetrical angle.
  • Main assembly includes pedestal, post insulator and electrical part.
  • For disconnectors with earth switch, listed parts include male and female contacts, blade, driving parts and interlock plate.
  • Main blade can use CJ6 motor mechanism or CS17 manual operating mechanism.
  • Earth blade can be matched with CS17 manual operating mechanism.
  • Installation methods include obverse, side, diagonal and reversal arrangements.
  • Outdoor and indoor use can be arranged according to project requirements.

Mechanical terminal load

Load itemUnitLower rating groupHigher rating group
Horizontal and vertical loadN7501000
Horizontal loadN500750
Vertical forceN7501000

Installation dimensions and drawings

L1-L5 installation values and mechanism notes are kept with the drawing references.

Installation dimension table

ItemL1L2L3L4L5
145 kV with earth25004000182018601840
145 kV without earth2500400018201860–
126 kV with earth20003000166016801640
126 kV without earth2000300016601680–
72.5 kV with earth17002400129013001215
72.5 kV without earth1700240012901300–

Drawing notes

DrawingMechanism noteAdditional visible values
GW5-72.5/126/630/1250/1600/2000 Outdoor HV disconnect switchMain blade with CJ6B mechanism; earth blade with CS17 mechanism490 mm, 300 mm switch installation dimension, 240 mm switch installation dimension, 4-dia 20, connection plate details for 630/1250 A and 1600/2000 A
GW5-72.5/126/630/1250/1600/2000 Outdoor HV disconnect switchMain blade and earth blade both with CS17 mechanismL1-L5 table repeated; CS17 right-side view; 2-dia 18 mounting reference

Mechanism notes visible in drawings

ItemValue
CJ6B motor mechanism weight and output moment90 kg / 500 N.m for main blade
CS17 manual mechanism weight and operating force15 kg / <= 200 N
Single phase windward area0.5 m2
Barycenter height600 mm
Technical dataModel references and rating tables
Drawing cropsMounting dimensions and layout details where supplied
Product photosPhotos confirm structure and mounting signals

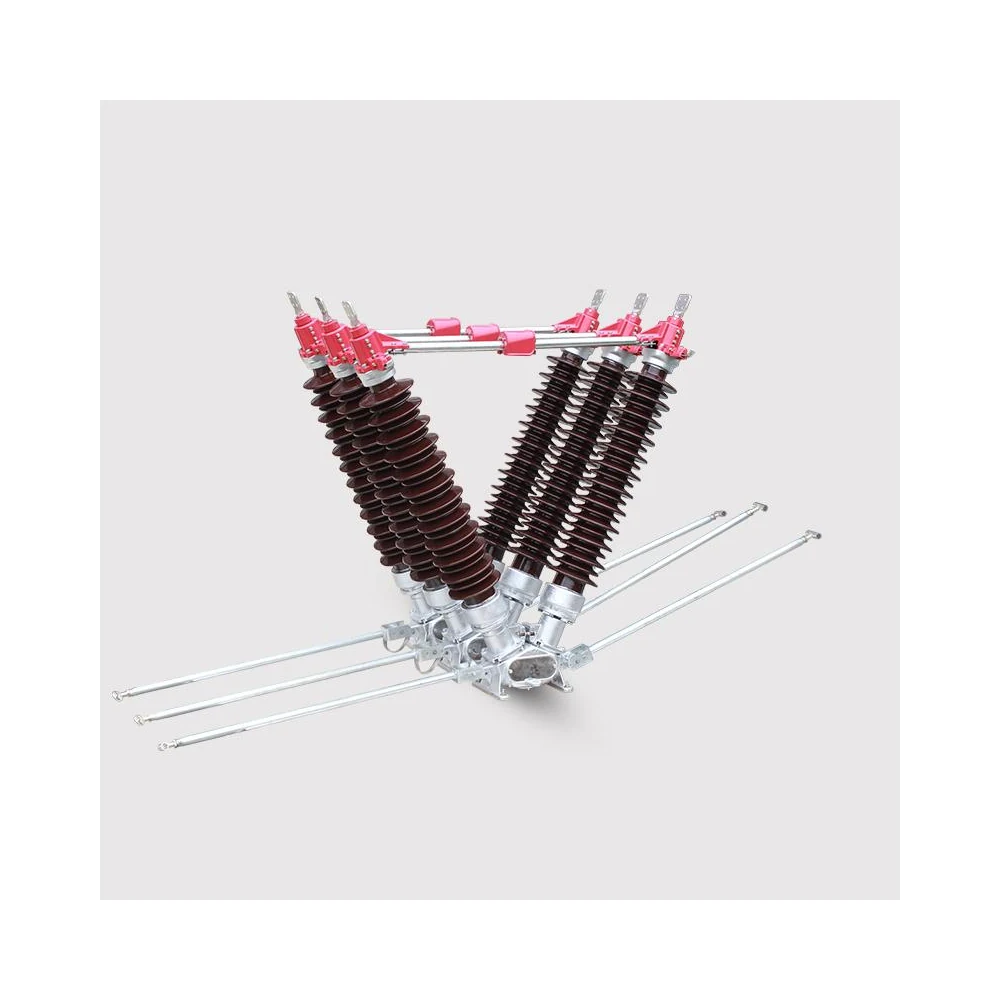

Three-pole V-type horizontal break outdoor isolator product

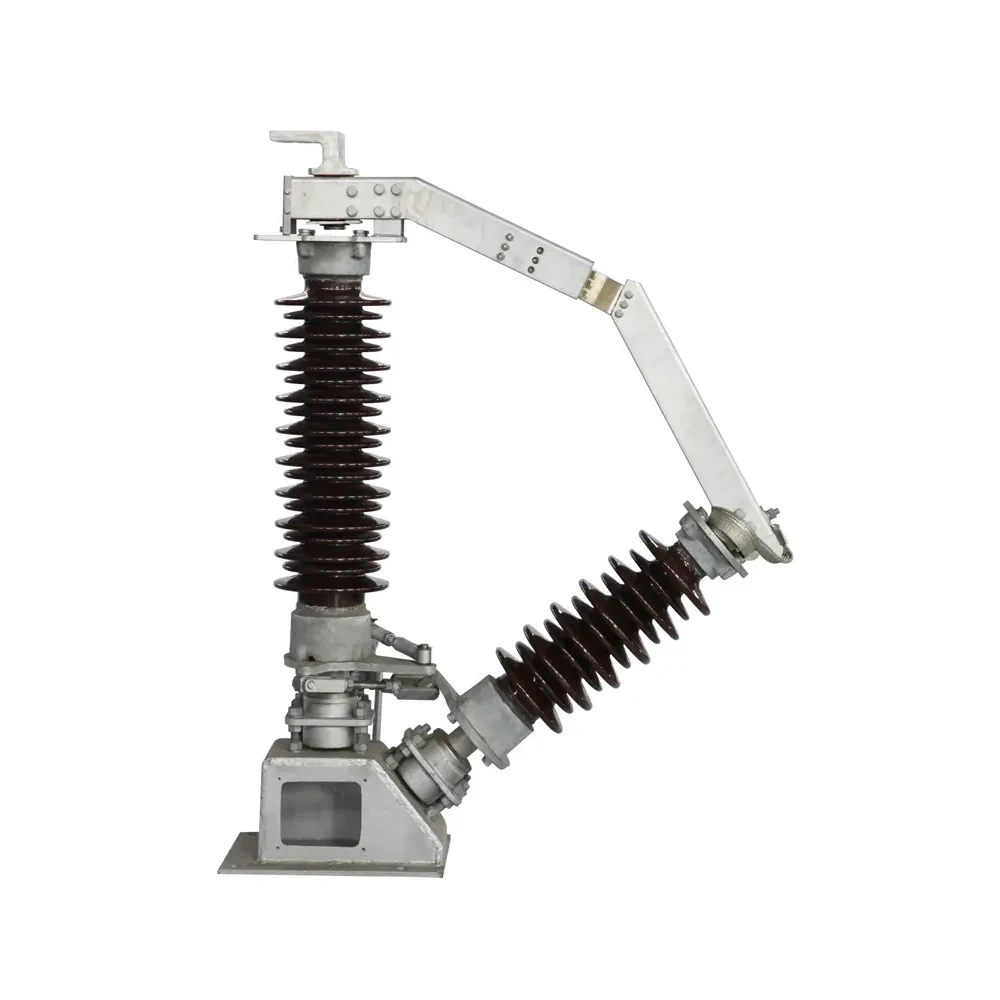

V-type horizontal break outdoor isolator single-pole product on a clean white background

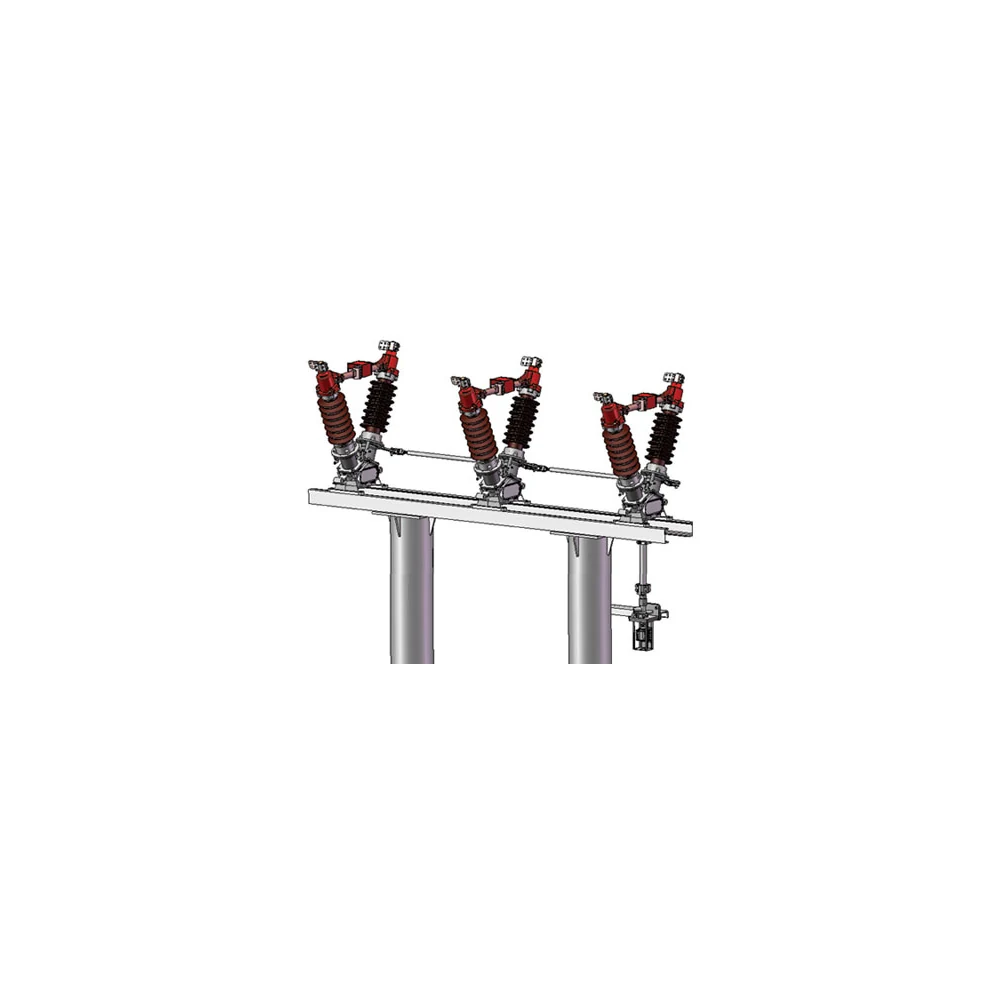

V-type horizontal break outdoor isolator structure render

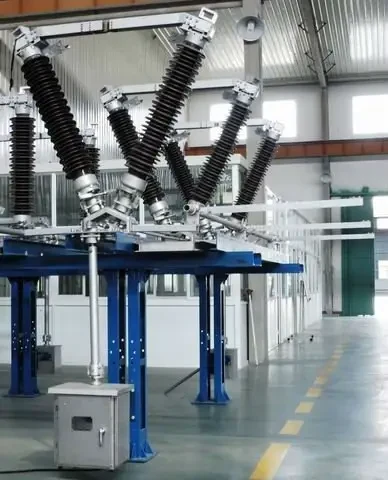

V-type horizontal break outdoor isolator installation reference

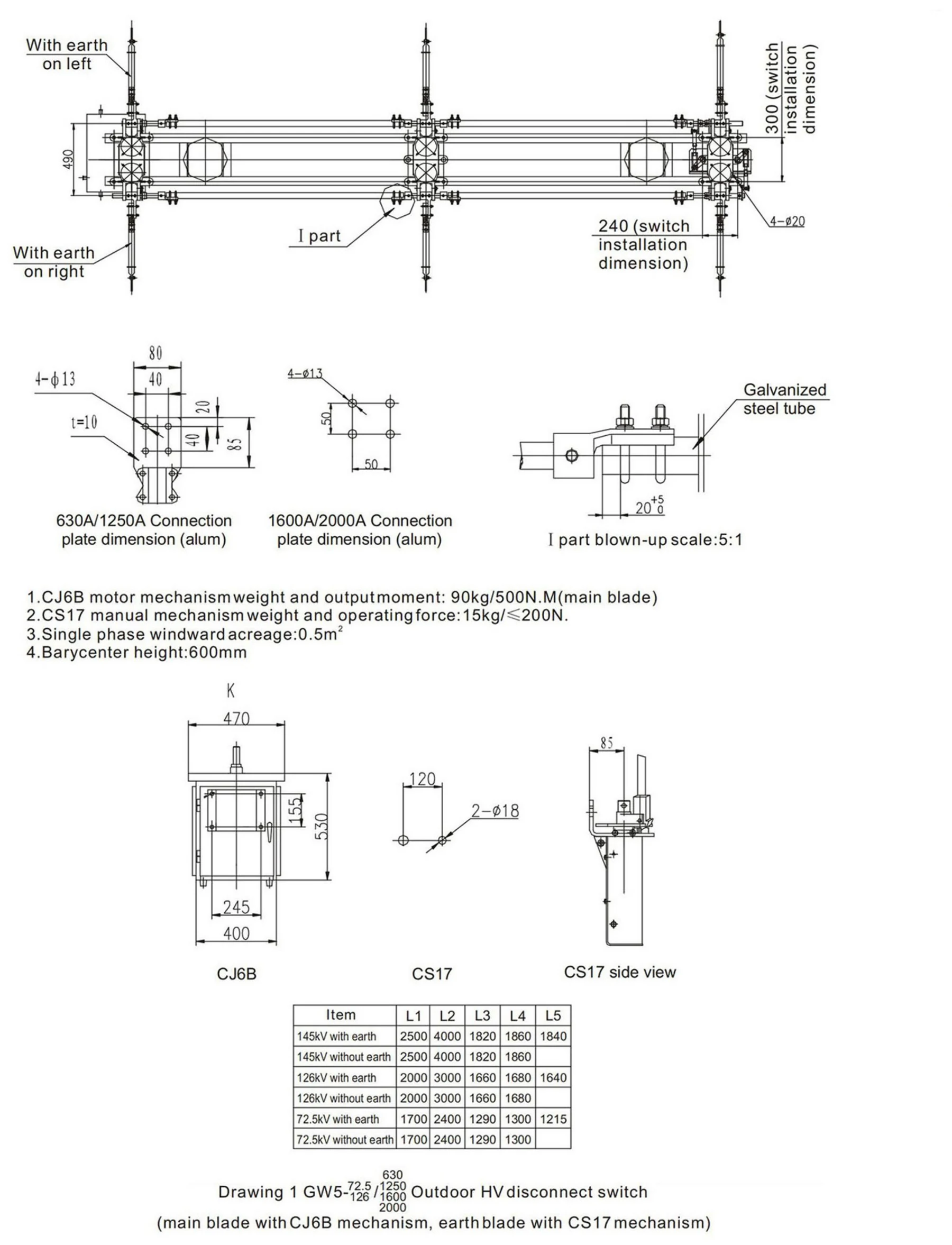

GW5 outdoor HV disconnect switch outline drawing with CJ6B main blade mechanism

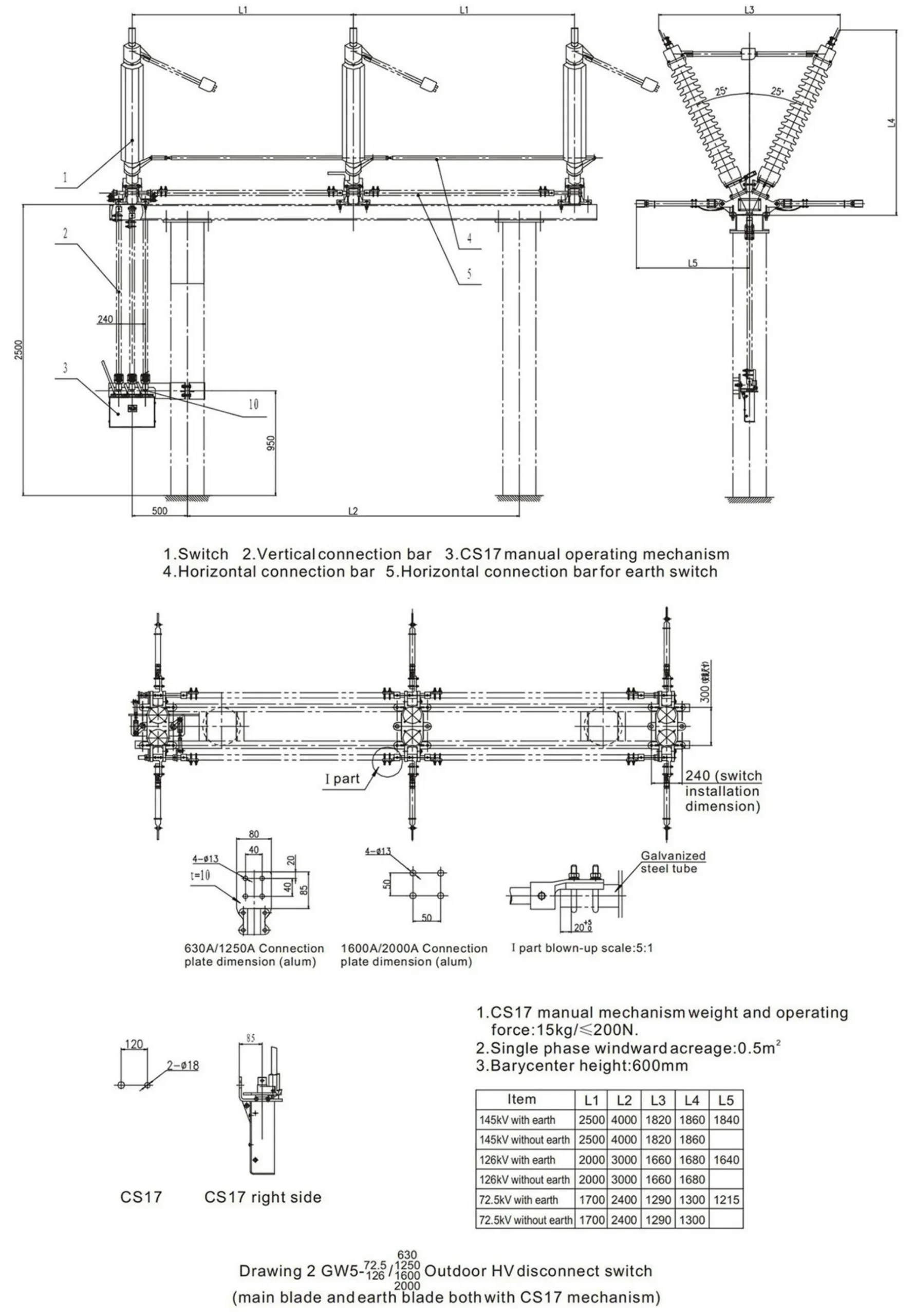

GW5 outdoor HV disconnect switch outline drawing with CS17 manual mechanism
