Where to Install Surge Arresters: Transformer, Cable Termination, Overhead Line, and Switchgear Locations

All images are generated illustrative technical visualizations, not XIYA POWER factory, product, quotation, design, installation, test, commissioning, maintenance, failure, outage, or field photographs.

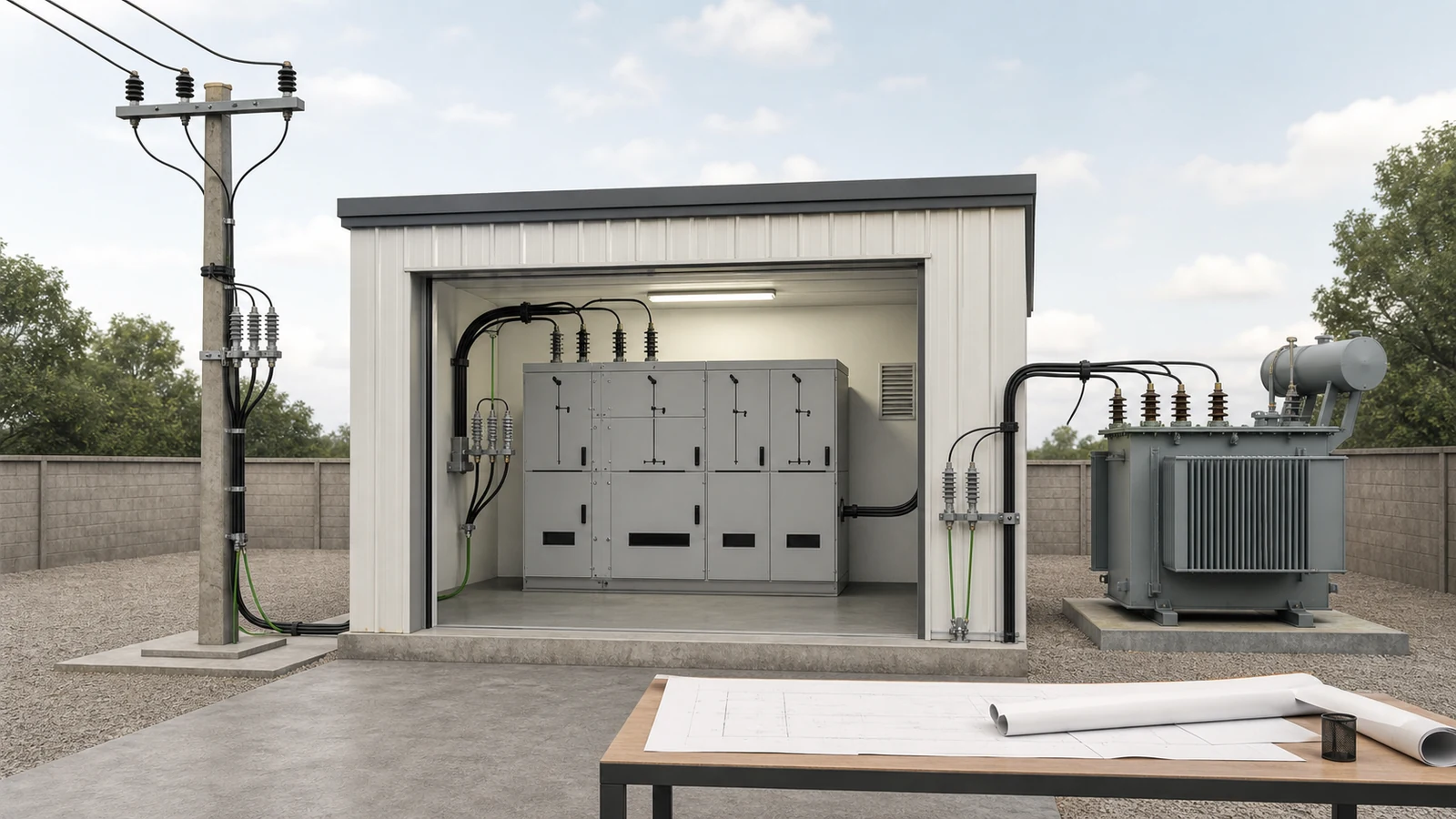

Choose the surge arrester installation location from the protected terminal and the complete line-to-earth connection path. Place the selected arrester as close to that terminal as practical within the approved design. Then verify phase and earth routes, cable transitions, reflections, equipment withstand, grounding interfaces, and physical clearances. Visual proximity alone is not a release decision.

Choose the Protected Terminal Before Choosing the Mounting Point

First identify the insulation boundary: a transformer bushing, cable sealing end, switchgear terminal, bus interface, pole-mounted device, or line insulator. Then trace the incoming surge path, candidate phase branch, arrester, earth return, and approved bonding point as one circuit.

The surge arrester application routes separate line and station uses from monitoring accessories. The basic surge arrester guide owns the MOV operating principle. Complete the surge arrester selection review for system voltage, grounding method, Uc or MCOV, TOV, protective characteristic, and energy duty before this placement review consumes those released inputs.

Use a location selection matrix rather than a drawing label.

Decision	Required input	Evidence source	Release evidence	Hold condition
Protected boundary	Exact equipment terminal and incoming path	Single-line diagram and equipment drawing	Terminal and path match controlled revisions	Boundary is ambiguous
Phase connection	Route, bends, junctions, terminal load	Layout, arrester outline, manufacturer data	Actual branch is shown and mechanically compatible	Route or load is unconfirmed
Earth return	Arrester earth terminal, bonding point, sheath or screen interface	Grounding and bonding drawings	Direct route reaches the approved point	Return path is incomplete
Physical fit	Orientation, support, clearances, access, enclosure	Manufacturer data and project specification	Mounting and clearance review closes	Interface drawing is absent
Remote terminals	Cable length, connected equipment, reflections	Surge or insulation-coordination study	Each remote terminal is addressed	One set is assumed to protect every end
Technical release	Reconciled drawings, studies, deviations	Controlled data pack	Signed release evidence identifies all inputs	Any decision remains open

No universal lead length, cable-end rule, arrester spacing, or protection distance can replace this matrix. The relevant value is the voltage at the protected terminal under the project conditions, not the distance measured on a plan by itself.

Place Arresters at Transformer Terminals and Cable Transitions

For a transformer, review the high-voltage bushing or winding terminal that receives the incoming surge. A candidate arrester is commonly evaluated at or near that terminal, with a direct phase branch and an earth return to the approved transformer grounding interface. The project still has to confirm terminal loading, support, clearances, incoming conductor or cable geometry, and the effective stress at the winding terminal.

An arrester located at remote switchgear cannot automatically be credited to the transformer through an unreviewed cable. Cable length, connected impedances, traveling-wave behavior, reflections, equipment withstand, and the actual phase and earth paths determine whether the transformer terminal needs a separate arrester set. Another winding or network connection is also a separate protected boundary.

At an overhead-to-cable or bus-to-cable transition, review the sealing end, incoming conductor, arrester branch, earth return, and cable sheath or screen bonding as one interface. A surge can enter the cable and reach a remote termination where reflections change terminal stress. This is why one-end versus both-end protection remains a study decision rather than a universal rule.

The official IEC 60099-5:2018 page identifies selection and application recommendations for surge arresters in three-phase systems above 1 kV. Its public scope does not prescribe a universal transformer position, cable-end arrangement, lead length, or release result.

At each transformer or cable transition, require the controlled terminal drawing, cable or conductor route, sheath or bonding diagram where applicable, and arrester outline. Also require equipment withstand data, the released arrester selection, and project study output. Hold placement when the remote end is treated as protected without this evidence.

Review Overhead-Line Placement for Equipment and Line Performance

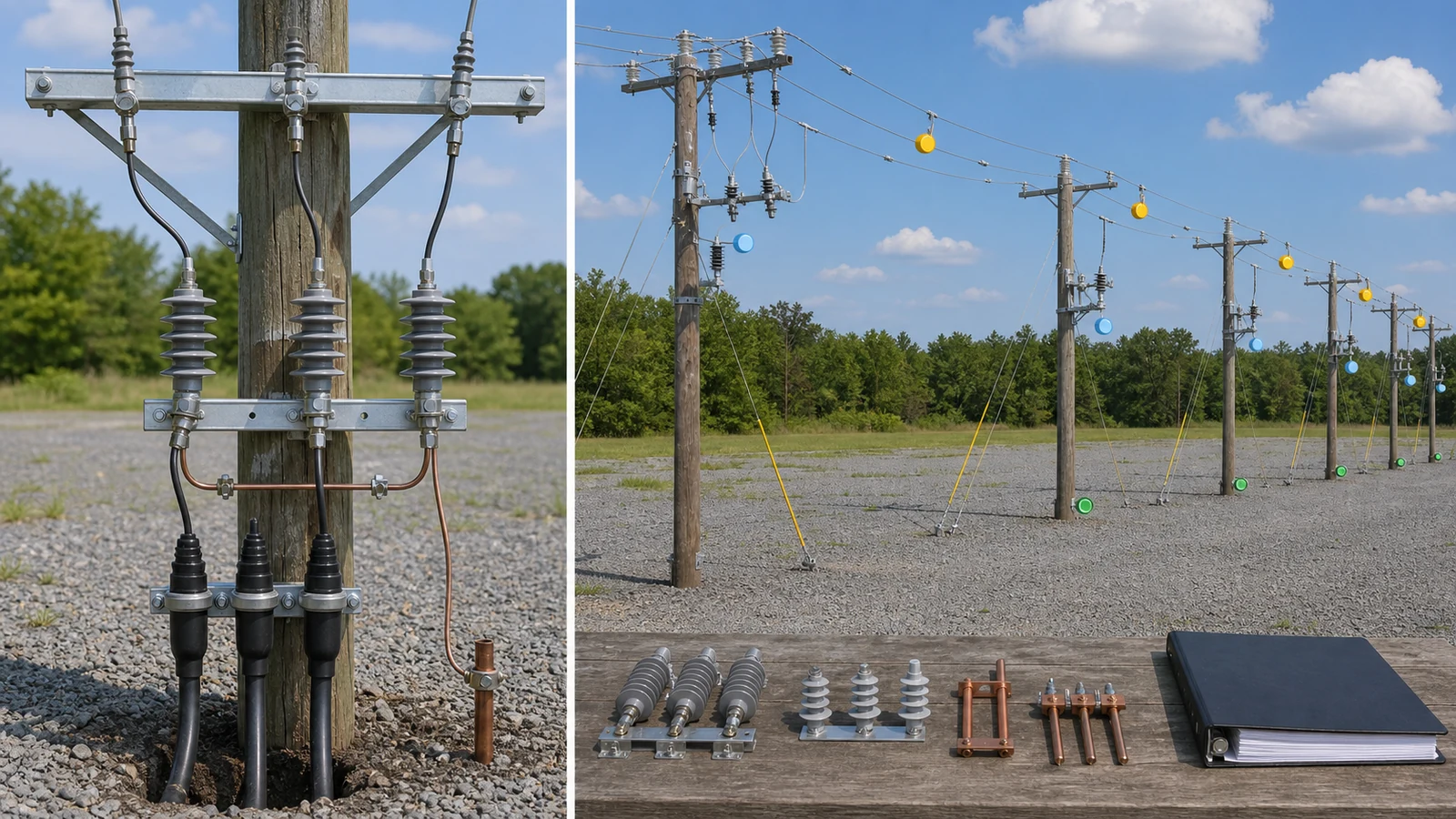

Overhead-line placement has two different jobs. Equipment protection focuses on a defined riser pole, cable termination, pole-mounted transformer, recloser, or other apparatus. The review can identify its protected terminal and direct line-to-earth connection path.

Line lightning-performance improvement distributes arresters across multiple structures. That decision requires lightning exposure, line insulation, structure grounding context, critical locations, a reliability target, and a study supporting the proposed positions. One arrester at one pole does not establish a line strategy, and a fixed pole interval is not transferable between networks.

The distribution switching equipment pillar provides the wider device context, but the line study must still separate arrester placement from switching-device selection.

Placement objective	Protected boundary	Required return	Release question
Specific apparatus	Terminal at one structure	Terminal layout, phase and earth paths, withstand and study evidence	Is this terminal protected under the stated exposure?
Cable riser	Overhead-to-cable transition	Sealing-end and bonding arrangement, both cable-end conditions	Does the transition and remote end require separate protection?
Line performance	Selected structures along a line section	Exposure, insulation, grounding context, critical points, reliability study	Do the proposed positions meet the stated line target?

Position Arresters at Switchgear and Cable Entry Interfaces

At switchgear, define whether the protected boundary is an incoming cable termination, outgoing feeder termination, bus entry, or another equipment terminal. The arrester phase branch should originate at that boundary, and the earth return should reach the approved enclosure earth bar or grounding interface without an undocumented detour.

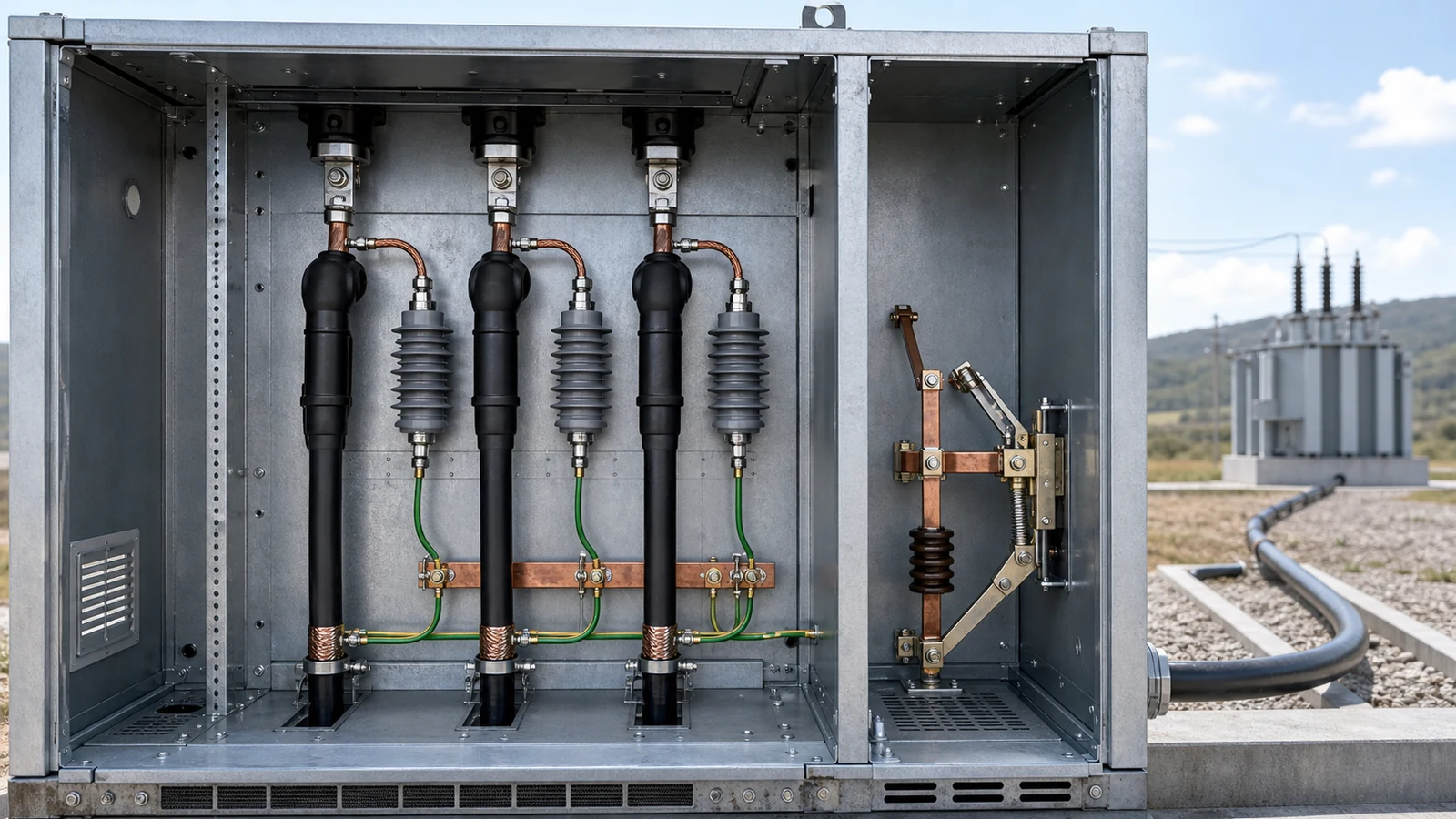

An internal arrester compartment can control mounting and connection points, but its section drawing must show the cable termination, bus connection, phase and earth clearances, support, access, and earthing-switch interface. External mounting requires the same evidence across the enclosure boundary. A symbol inside the single-line diagram does not prove physical fit.

Use the medium-voltage switchgear cable-entry review for cable route, bend radius, termination kit, CT passage, screen or sheath path, and gland-plate coordination. This article consumes that approved interface only to position the arrester.

Switchgear position	Phase interface	Earth interface	Placement evidence
Incoming cable	Incoming termination or connected bus	Approved enclosure earth bar	Cable-entry, bonding, compartment, and withstand review
Outgoing cable	Outgoing termination or connected bus	Approved enclosure earth bar	Remote-end and cable study reviewed separately
Internal compartment	Fixed compartment connection	Compartment earth bar	Manufacturer section, clearances, support, and access
External bracket	Sealing end or external conductor	Structure or enclosure grounding point	Boundary, clearances, terminal loading, and route drawings

A switchgear incomer arrester does not automatically protect a transformer connected through an unreviewed feeder cable. Release the switchgear and transformer decisions separately.

Control Lead Geometry, Earthing Path, and Release Evidence

The arrester protective characteristic applies at its terminals. During a fast surge, the actual phase branch and earth return can add voltage between the arrester and protected terminal. Therefore, review the complete connection loop, not only the arrester body or the shortest visible conductor.

Keep both routes short and direct as practical within the approved design, while maintaining required clearances, mechanical support, terminal loading, and access. Avoid unnecessary bends, loops, junctions, and shared paths that are absent from the study model. Do not convert this principle into a universal metre limit.

An arrester-location RFQ checklist should request:

• protected terminal and incoming surge path on the current single-line diagram;
• physical layout with phase branch, earth return, lengths, bends, and junctions;
• cable data and sheath or screen bonding drawing at each transition;
• transformer terminal or switchgear compartment drawings as applicable;
• arrester outline, mounting, terminal-load, and manufacturer data;
• equipment withstand and the released DSE-14 selection;
• project specification and surge or insulation-coordination study output;
• approved grounding point and interface, without redesigning the grounding electrode;
• short-circuit study where relevant to connecting-conductor or fault duty;
• deviations, document revisions, owners, and technical release status.

This data pack must describe the proposed physical arrangement, not an idealized connection. Hold technical release when a route, protected terminal, remote end, bonding point, clearance, or study assumption cannot be matched to a controlled drawing.

Hold the Representative Layout at Four Placement Decisions

Representative engineering review, entirely synthetic, illustrative, and non-universal. This is not a XIYA POWER customer, supplier, factory, product, quotation, design, installation, test, commissioning, maintenance, failure, outage, or field case. No placement, protection, compliance, safety, acceptance, or result is claimed.

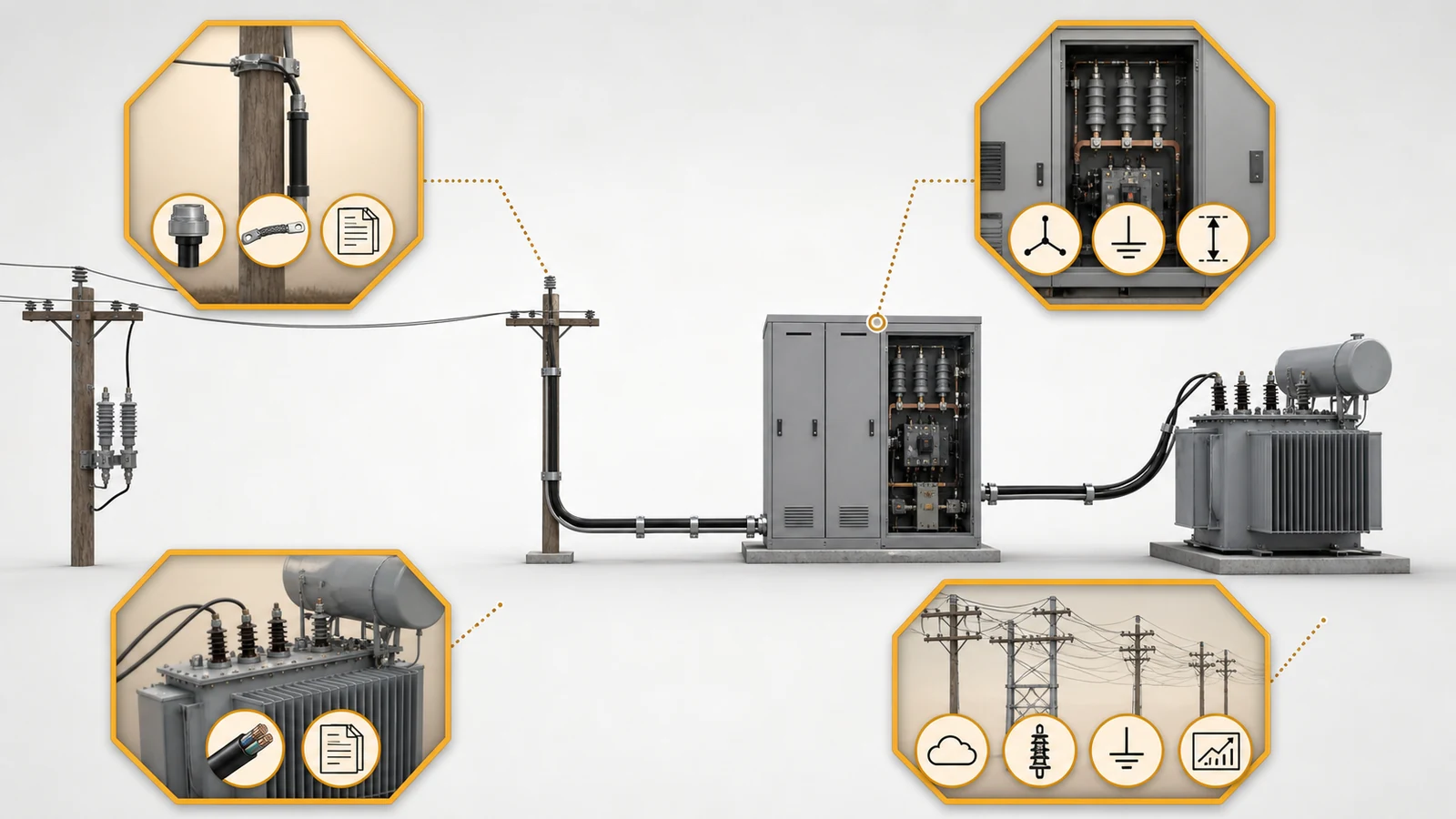

Synthetic layout inputs: One 24 kV-class feeder has a 1.4 km overhead section ending at cable riser pole RP-01. A 220 m shielded cable connects RP-01 to an indoor metal-clad switchgear incomer. A second 35 m shielded cable connects the switchgear transformer feeder to an outdoor transformer high-voltage termination.

Synthetic candidate layout: One line-arrester set is shown at pole P-17, 65 m before RP-01, and one station-arrester set is shown in the switchgear incomer. No arrester is shown at RP-01 or the transformer terminal. The switchgear detail shows a 2.6 m phase branch from the incoming termination and a separate 1.8 m earth route to the ground bar.

The return omits the RP-01 sheath or screen bonding drawing, switchgear compartment section and clearance check, transformer terminal and grounding-interface drawing, and overhead-line lightning-performance study. It does not compare either candidate set with remote-terminal stress or document traveling-wave and reflection effects.

All distances, omissions, and hold states in the following table are synthetic.

Synthetic placement hold	Observed return	Missing release evidence	Decision
Cable transition	P-17 set is 65 m before RP-01; no local set shown	RP-01 phase and earth routes, bonding drawing, transition and remote-end study	Hold; 65 m is an input, not a universal limit
Switchgear	Incomer set with 2.6 m phase and 1.8 m earth routes	Compartment clearances, cable and earthing-switch interfaces, withstand and study reconciliation	Hold; neither route is declared acceptable or excessive
Transformer	No local set; transformer is 35 m of cable from switchgear	Terminal geometry, grounding interface, local-option review, remote-terminal stress study	Hold; a local set is not declared universally mandatory
Overhead line	One set at P-17 on a 1.4 km section	Exposure, insulation, structure grounding context, critical locations, reliability target, line study	Hold; no universal spacing is inferred

The review does not accept or reject any candidate. It shows why four distinct protected boundaries require four controlled closures.

Frequently Asked Questions

Where should a surge arrester be installed for a transformer?

Evaluate it at or near the protected transformer terminal, with direct phase and earth routes, then confirm terminal loading, grounding interface, incoming conductor or cable, equipment withstand, and study results. A remote arrester can be credited only when the actual connection and terminal stress are demonstrated.

Should a cable termination have an arrester at one end or both ends?

There is no universal rule. Review both cable ends, cable length, sheath or screen bonding, connected equipment, reflections, withstand data, and the project study. One end may be adequate in one arrangement while another requires separate protection at the remote termination.

Can an overhead-line arrester protect equipment farther down a cable?

It limits voltage at its own connection point. Adequacy at remote equipment depends on the cable, reflections, connected terminals, phase and earth paths, equipment withstand, and study assumptions. Do not credit the remote terminal without that evidence.

Where should a surge arrester connect in medium-voltage switchgear?

Connect it to the cable or bus terminal that defines the protected boundary and to the approved earth interface. Confirm the internal compartment or external bracket, clearances, support, cable and earthing-switch interfaces, access, and the remote-end protection decision.

How short should surge arrester leads be?

Keep phase and earth routes as short and direct as practical within the approved arrangement, but do not use a universal length. The acceptable geometry depends on the arrester characteristic, surge conditions, equipment withstand, connection loop, and project study.

What evidence is required before releasing an arrester location?

Require controlled single-line and layout drawings, phase and earth routes, cable bonding information, and transformer or switchgear interfaces. Also require arrester manufacturer data, equipment withstand, released selection inputs, project specification, applicable studies, deviations, and a signed technical release.
