Switchgear Baffle Plates, Shutters, and Partitions: Segregation, Movement, Fit, and Acceptance

All images in this article are generated illustrative technical visualizations, not XIYA POWER products, batches, lots, factory inspections, assemblies, tests, FAT, installations, commissioning, maintenance, or field photographs.

By Candy Zhao, Sales Director, XIYA POWER.

A switchgear baffle plate shutter inspection needs more than a visual match. Acceptance requires the correct part identity and cabinet function, controlled material and condition records, dimension and fit checks against the approved basis, non-energized shutter movement and state coverage, and a closed evidence chain. Each gate has its own hold condition and release state. Part inspection does not establish complete-switchgear IAC, LSC, IP, dielectric performance, partition classification, or interlocking.

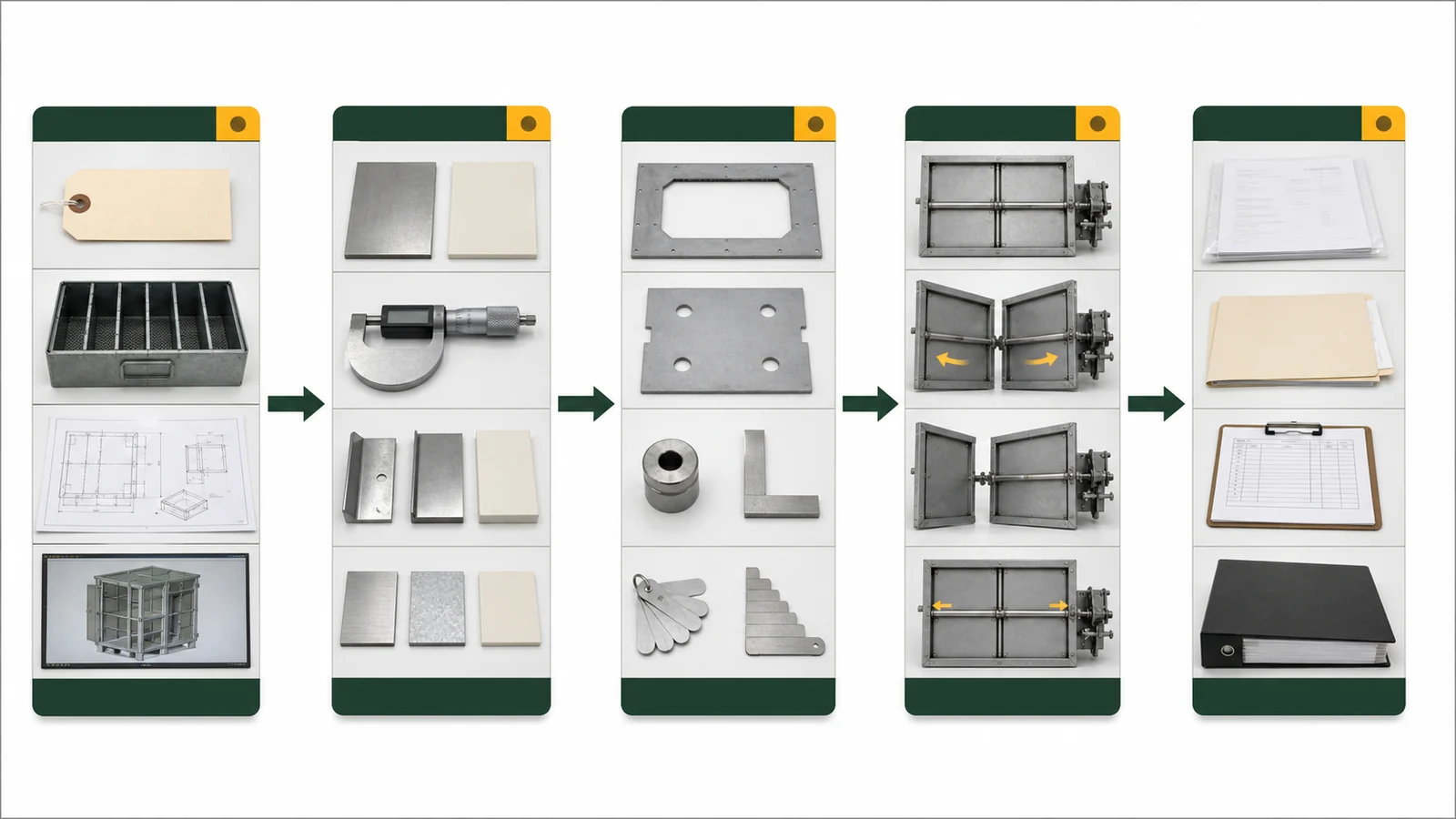

Use Five Independent Acceptance Gates

Use an acceptance matrix before inspection so a clean appearance or one matching dimension cannot substitute for missing evidence elsewhere.

This five-gate matrix is a project-review framework, not a direct IEC clause list or a substitute for purchased standards and project-controlled acceptance criteria.

IEC 62271-200:2021 applies to prefabricated AC metal-enclosed switchgear and controlgear above 1 kV and up to and including 52 kV. Its public page provides complete-assembly context; it does not publicly define part-specific shutter cycles, plate thicknesses, overlaps, clearances, partition classes, materials, or acceptance tolerances. Use the purchased project requirements, applicable standards, approved drawings, manufacturer data, and inspection plan for actual criteria.

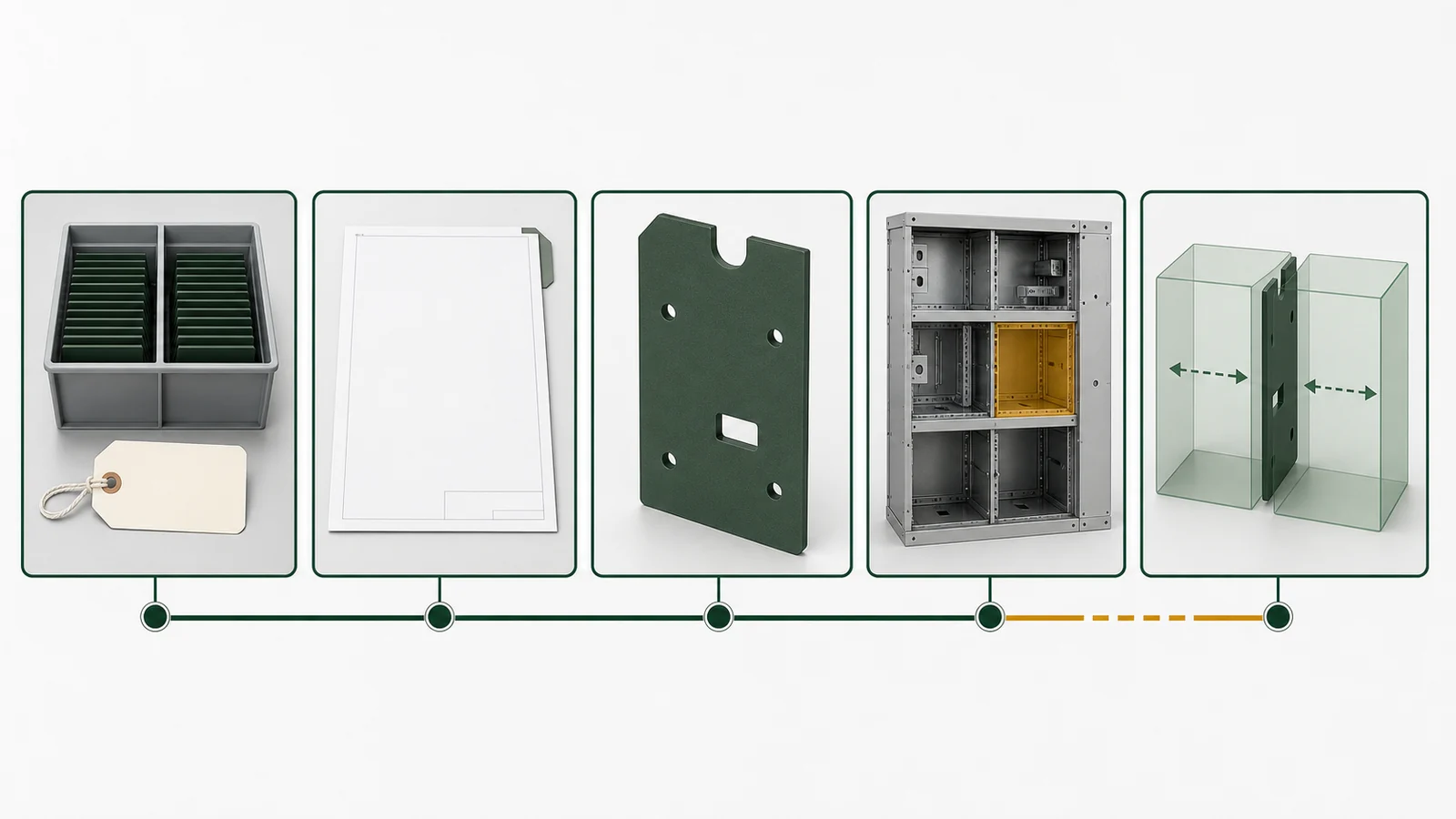

Freeze Part Identity, Cabinet Position, and Segregation Function

Start from where the part sits and what it is intended to do. Record the cabinet series, bay and compartment, orientation, part code, batch/lot, and approved drawing revision. Then state whether the item is a phase barrier, compartment partition, access shutter, bus-section barrier, or another defined segregation part. A similar outline cannot inherit an unstated function.

The baffle plate product owner provides eight visual and drawing routes and emphasizes cabinet position, outline, notch, mounting-hole pattern, and interface direction rather than shape alone. The wider Switchgear Components pillar provides the family context. Drawings can support identity and dimensions, but they do not create an unstated rating or complete-equipment classification.

Trace the physical tag and packing list to the PO, lot or batch, and approved revision. If a baffle aperture or bracket also interfaces with a CT, VT, or sensor, route ratio, class, burden, wiring, polarity, grounding, and accessory fit to the sensor and instrument-transformer accessory review. COMP-10 remains responsible only for the segregation part and its mechanical interface.

Create a part-to-function map before dimensional inspection. Show the part in the cabinet section, the adjacent moving or live-part envelope from the approved design, its mounting direction, the opening it is intended to cover, and any specified removable or bonded condition. This prevents a loose component from being accepted against the correct drawing but assigned to the wrong side, phase, or compartment. Where the assembly drawing and detail drawing use different datums, record the controlled transformation between them rather than transferring dimensions by visual estimate.

Inspect Material, Dimensions, Edges, Surface, and Fit

Separate material/condition evidence from dimensional fit even when both checks occur at one station. For material and condition, verify the required declaration or process record, controlled thickness and finish where specified, flatness, cracks, burrs, contamination, corrosion, deformation, embedded debris, and handling damage. A photograph records visual state; it cannot replace a material or coating record. Metallic bonding or earthing details are checked only where the cabinet design requires them.

For dimensions, use the datum and tolerance source stated in the approved drawing. Record the measuring instrument, instrument status, method, and any required uncertainty basis. Check the outline, notch and aperture positions, hole pattern, brackets, fasteners, stops, overlaps, gaps, and clearances to adjacent parts. Confirm that the part can be assembled without forced fit or unauthorized rework.

Some conditions exist only in assembly. A partition overlap, shutter coverage, or gap beside an adjacent component cannot be accepted from the loose part alone. If a recorded difference lacks a confirmed tolerance, assembly datum, or approved disposition, keep it on hold. Do not infer physical pass or failure from the number by itself.

Retain the as-found record separately from any adjustment or authorized rework. The original measurement, instrument, datum, photograph index, and inspector remain traceable; the disposition then identifies what may change and who approved it. A later reinspection creates a new result linked to the original deviation. Overwriting the first value with the adjusted value breaks the evidence chain and can conceal whether the approved action was actually completed.

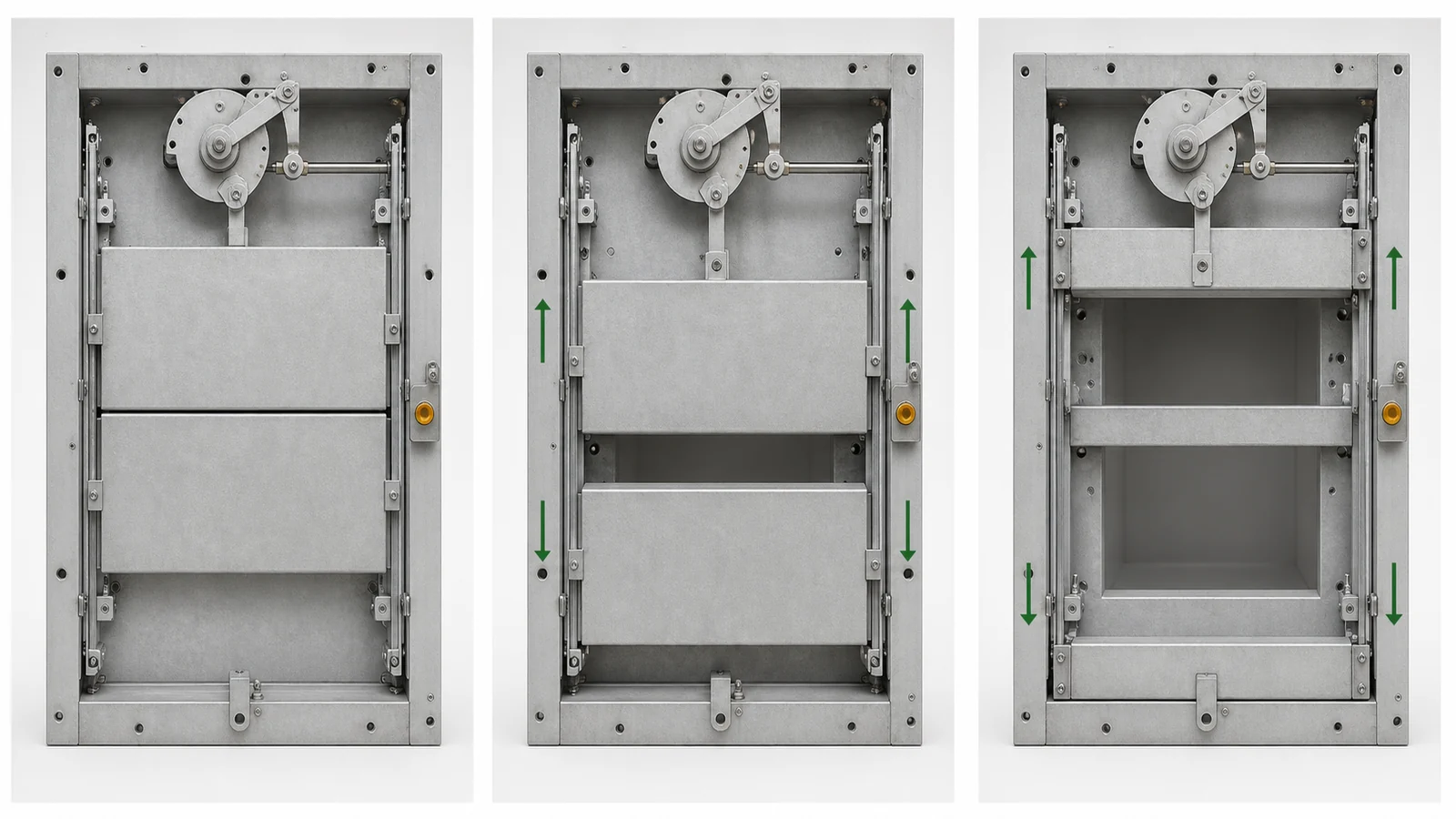

Verify Shutter Movement and State Coverage Without Energizing

All movement checks in this method are non-energized. Confirm the actuator, cam, pin, lever, leaf, linkage, guide, and stop arrangement against the controlled drawing. Move each leaf through the required range under the inspection plan and observe binding, skew, sticking, delayed return, or rebound. Where multiple leaves are intended to move together, record their relative positions or timing using the specified method.

Map movement to the defined cabinet states. Depending on the actual design, the inspection basis may identify service, test, disconnected, and access positions. Record whether the required opening is covered or exposed in each state and whether the intended stop is reached. Do not assume that every design uses the same sequence.

Cycle count, travel, allowable lag, force, and measurement method are project/design inputs, not universal values. If they are absent, Gate 4 remains open. A freely moving shutter is not automatically acceptable, and incomplete evidence does not automatically make it defective.

Close the Evidence Chain Without Claiming Assembly Performance

Compile the acceptance data pack so another reviewer can trace every decision:

• PO, part identity, cabinet position, batch/lot and packing-list mapping;
• approved drawing and inspection plan revisions, plus sample approval where required;
• material, finish, visual, dimensional and non-energized movement records;
• measurement method, datum, uncertainty source and instrument status;
• every deviation, its authorized disposition, and any required reinspection or test record;
• the final hold register and named release authority.

A supplier certificate supplements this record; it does not replace project inspection. Likewise, a closed part record does not prove that adjacent parts, fasteners, mechanisms, clearances, and the complete cabinet were assembled or tested correctly. The switchgear internal arc classification guide owns accessibility, classified sides, arc current/duration, configuration evidence, and room/pressure-relief conditions. Part inspection cannot create an IAC, LSC, IP, dielectric, or interlocking claim.

Photographs and video can support traceability when they show the part identifier, cabinet position, relevant datum, and state being reviewed. They do not establish a dimension, material grade, movement force, cycle count, or electrical property unless the controlled method and underlying record provide that evidence. File names and photo indexes should therefore map back to the inspection line and deviation number rather than sit in an unstructured folder.

Hold a Synthetic Component Set at Four Open Decisions

This is an entirely synthetic representative engineering review created only to demonstrate the acceptance method. It is not a XIYA POWER customer project, product batch, lot, factory inspection, assembly, FAT, installation, commissioning, maintenance, or field case. All identifiers, dimensions, readings, and observations are invented and are not universal acceptance limits.

The synthetic set is for an unbranded 12 kV-class withdrawable feeder cubicle with approved-drawing basis revision D. For illustration only, this invented worksheet assigns fictional baseline values of 2.0 mm thickness, a 72 x 148 mm four-hole pattern, 186 mm travel per shutter leaf, and 18 mm overlap; none is a XIYA POWER specification or universal tolerance.

All four holds remain open. No part set is accepted, rejected, released, installed, repaired, or confirmed nonconforming. The numerical differences demonstrate hold logic only; they are not real measurements or universal tolerances.

For a controlled part-match or acceptance handoff, use the XIYA POWER contact page to send the cabinet position, approved drawing, part records, and inspection basis together.

Frequently Asked Questions

What should a switchgear baffle plate inspection include?

It should confirm identity and function, material and physical condition, dimensions and assembly fit, non-energized shutter movement and state coverage, and the complete evidence chain. Record the approved basis, datum, instrument status, deviations, reinspection, hold condition, and authorized release state. Shape or appearance alone is insufficient.

Can a baffle or partition be accepted by shape and dimensions alone?

No. Shape and dimensions do not prove the correct drawing revision, cabinet position, material, segregation function, movement behavior, or evidence closure. Dimensional results also need a controlled datum, tolerance source, measurement method, and instrument status. An unresolved difference remains on hold even when it appears small.

How should switchgear shutter movement be checked?

Check it without energizing the cabinet. Exercise the defined actuator and leaves through the positions required by the inspection plan; observe travel, synchronization, stops, return, rebound, sticking, and coverage of the relevant access openings. Record the method and evidence. Do not impose a universal cycle count or travel value.

Which records are needed for lot or assembly release?

Retain PO and part identity, lot/batch traceability, approved drawing, inspection plan, sample approval where required, material/process evidence, instruments, visual/dimensional/movement records, deviations, dispositions, reinspection, hold register, and named release authority. A supplier certificate is supporting evidence, not a substitute for project records.

Does an accepted shutter or partition prove internal arc classification?

No. IAC and related complete-switchgear declarations depend on the assembled configuration, accessibility, classified sides, test conditions, and applicable evidence. An individual shutter, baffle, or partition cannot establish IAC, LSC, IP, dielectric performance, partition classification, or interlocking adequacy.

When should a segregation part remain on hold?

Keep it on hold when identity or revision is unresolved; required material/process evidence is missing; a dimension lacks its datum, tolerance, uncertainty, or disposition; movement evidence lacks the required method or source; or a deviation and reinspection remain open. Missing evidence is not proof of physical pass or failure.
