Distribution Feeder Equipment Selection Matrix: Isolation, Load Switching, Fuse Protection, and Automatic Reclosing

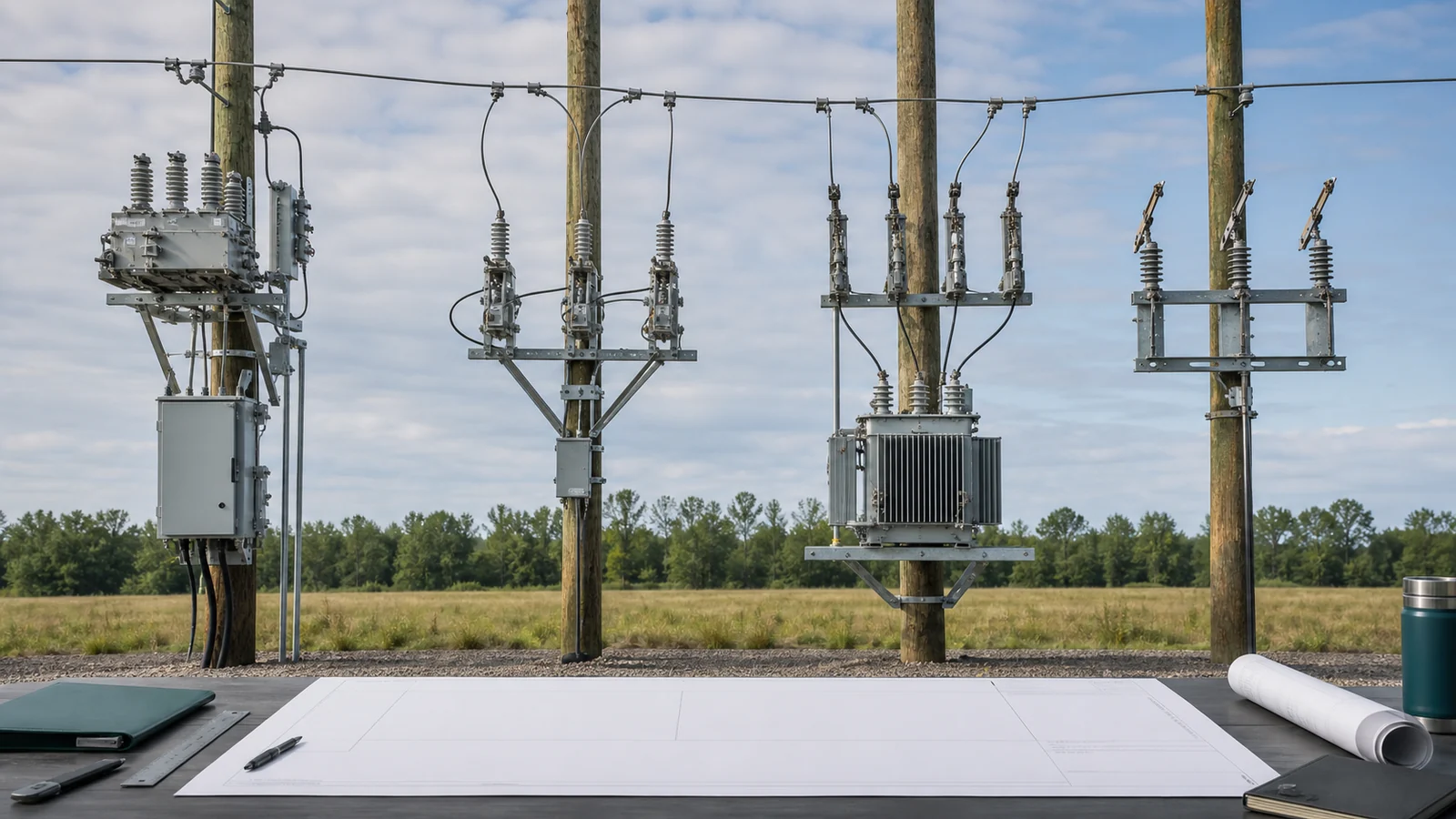

A distribution feeder equipment selection matrix should begin with the duty at each feeder position, not a preferred product name. Separate isolation, normal-load switching, overcurrent protection, fault interruption, automatic reclosing, control, and maintenance needs before comparing equipment.

The Distribution Switching Equipment pillar maps the commercial families, while the distribution switchgear foundation explains the basic duties. This article converts those foundations into a release method for source, mid-feeder, branch, boundary, and maintenance positions.

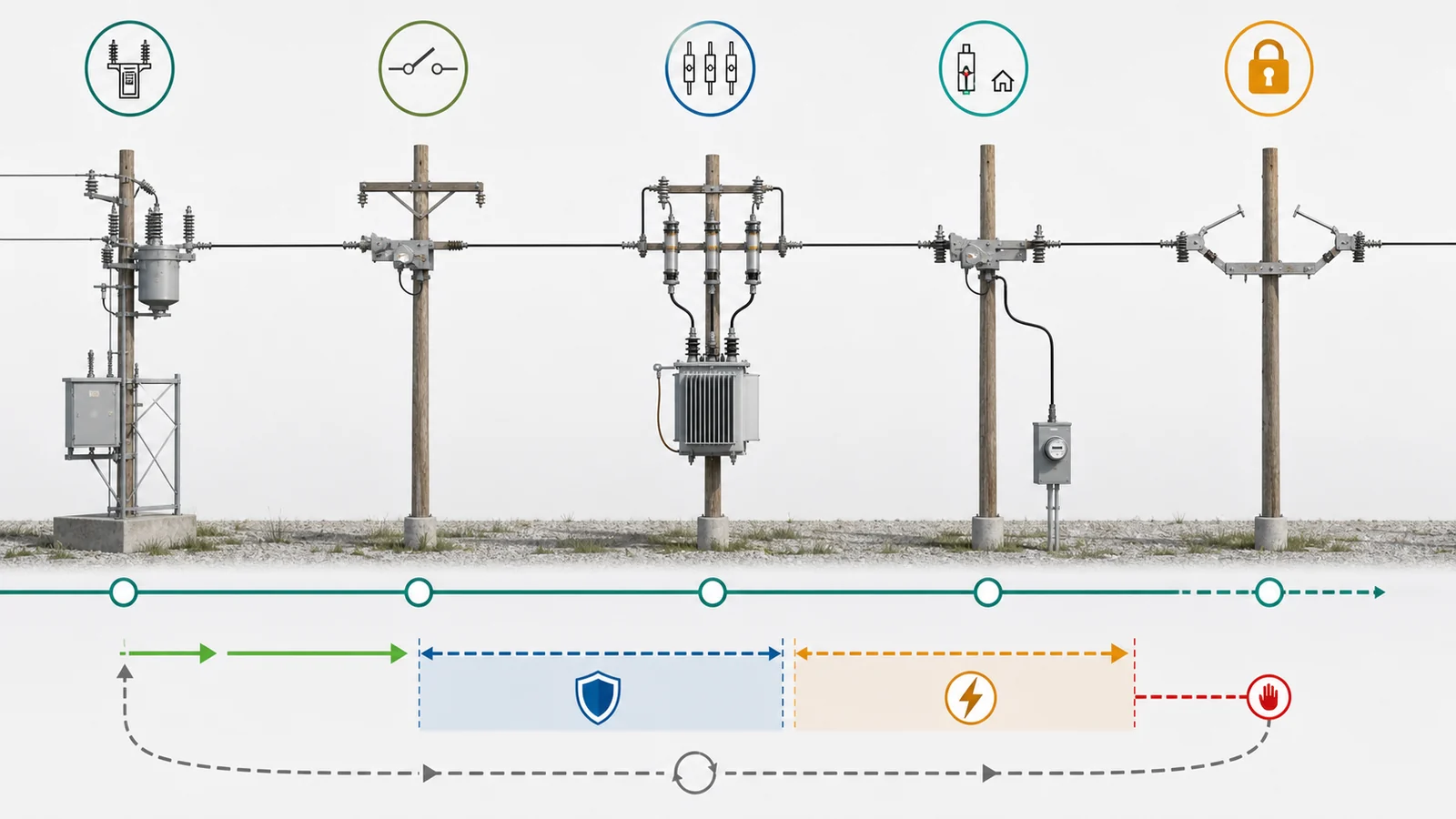

Build the Feeder Duty Map Before Naming Equipment

Start with the controlled one-line, feeder topology, position and normal state. Then define the required switching action, available fault basis, protection zone, isolation arrangement, operating philosophy, service conditions, and physical interfaces. A product label entered before those inputs are resolved is an assumption, not a decision.

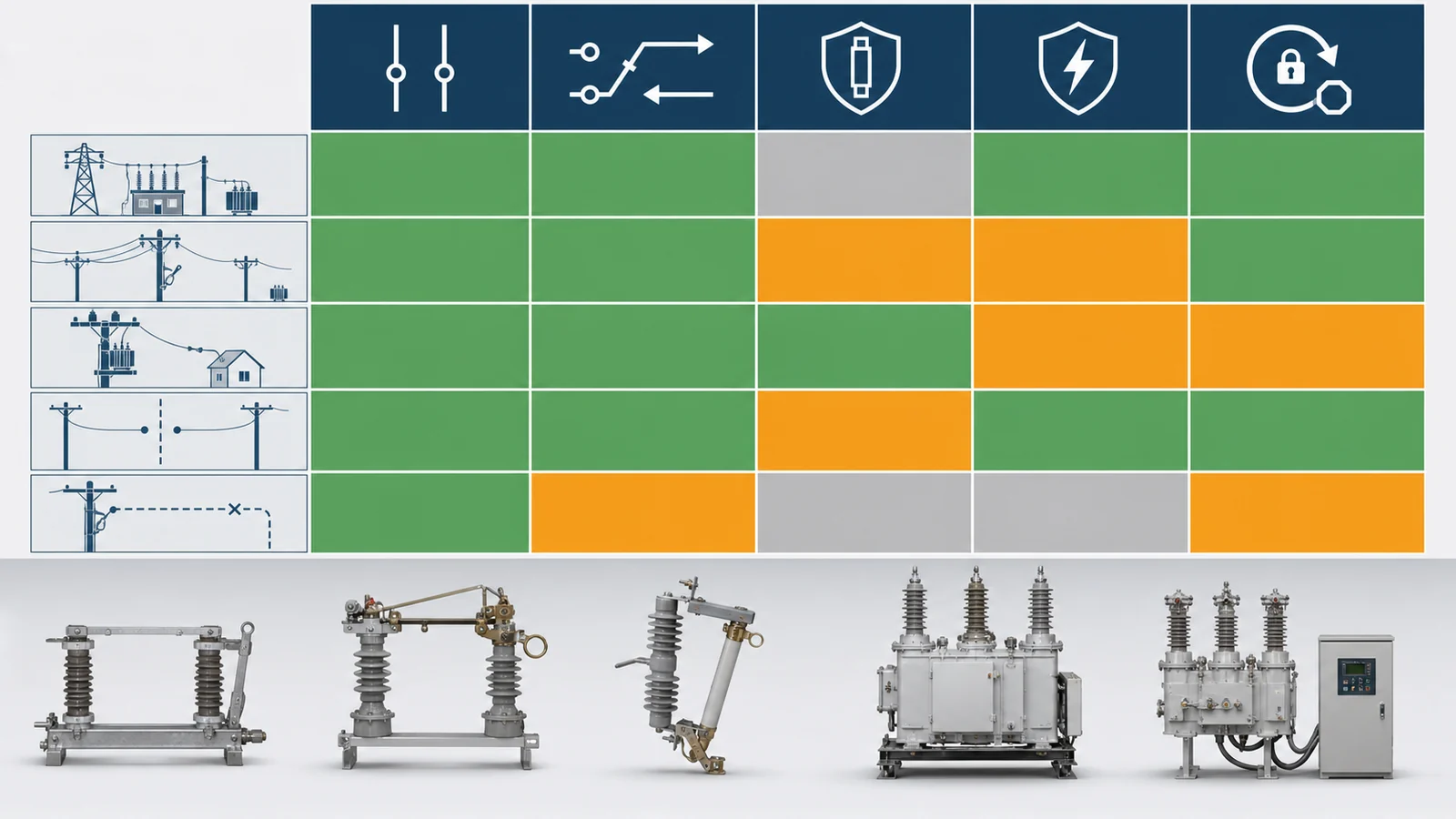

Feeder position or task	Required action	Candidate function	Disqualifying gap	Required input and release evidence	Hold condition
Source position	Normal switching, fault interruption, protection and isolation interface	Breaker or recloser function with a defined isolation arrangement	Interrupting or isolation duty is unproven	One-line, fault study, protection basis, declared functions and drawings	Fault or isolation basis is incomplete
Mid-feeder or tie	Sectionalize, make/break stated load, possibly interrupt faults or automate restoration	Load-switching or recloser function according to the duty map	Normal switching is confused with fault clearing	Normal state, load flow, fault zones, operating and reclose philosophy	Topology or required action is unresolved
Branch or transformer tap	Coordinate overcurrent protection and provide the required switching/isolation interface	Fuse, switch-fuse, breaker or recloser function as applicable	Protection is selected without fault and coordination data	Fault basis, equipment withstand, fuse/relay curves and coordination study	Selectivity or interrupting suitability is unproven
Boundary or sectionalizing point	Define responsibility, switching, protection, metering and isolation interfaces	One device or a coordinated assembly	Ownership boundary is treated as an electrical duty	Interconnection requirements, one-line, interfaces and approved operating basis	Required functions have no responsible device
Maintenance isolation point	Establish defined isolation and earthing access after interruption	Disconnector or declared isolating function	Open appearance is treated as proof of a safe work condition	Isolation/earthing drawing, indication, interlocks and site procedure	Isolation arrangement is not approved

Compare offers against one matrix. A missing required input keeps the position on hold; it should not be replaced by a catalog default or by data from another configuration.

Separate Isolation from Planned Load Switching

The disconnect switch versus load break switch guide owns the detailed two-device boundary. For this matrix, the practical distinction is shorter: a disconnector establishes a defined isolation point after current has been interrupted by a suitable device, while a load break switch performs its declared normal-current making and breaking duty.

Neither name proves the complete feeder function. A disconnector may have only the limited switching capabilities specifically declared for its design. A load break switch does not automatically provide fault interruption or the isolation arrangement required by the project. Motor drives, arc horns, interrupter-looking parts, controller cabinets, and visible gaps are inspection clues, not substitutes for applicable ratings and evidence.

For every proposed position, record:

• what current, if any, the device must make or break;
• which device clears fault current and which device creates the isolation point;
• the normal-open or normal-closed state and operating side;
• local, remote, and automatic commands that are permitted;
• position indication, interlock, and earthing interfaces; and
• the approved procedure governing the switching and isolation sequence.

Do not derive a universal operating sequence from a generic article. The project specification, equipment instructions, protection design, and site safety rules control the actual sequence.

Assign Fuse Protection, Fault Interruption, and Automatic Reclosing

A drop-out fuse cutout can provide coordinated overcurrent protection for an applicable branch or transformer duty. Its fuse link, complete cutout interrupting capability, upstream/downstream coordination, and equipment withstand must be checked together. Fuse operation does not provide automatic reclosing, and a drop-open indication does not replace the approved isolation and absence-of-voltage process.

A circuit breaker provides the declared making and fault-breaking functions of its complete equipment package. Protection relays, sensing, control power, reclosing logic, communication, and isolation interfaces remain separate specification items unless the offered assembly explicitly includes and evidences them.

An automatic recloser combines an interrupting device with sensing, controller logic, and reclose/lockout behavior. The public IEC 62271-111:2019 page applies to specified AC automatic circuit reclosers above 1,000 V and up to and including 38 kV in overhead, pad-mounted, dry-vault, and submersible arrangements; it excludes devices requiring dependent manual operation. That public scope does not govern every fuse, switch, disconnector, or circuit breaker in this matrix.

Function	Possible equipment route	What it does not prove automatically	Evidence needed for the position
Coordinated fuse protection	Fuse cutout or declared switch-fuse assembly	Automatic restoration, remote control, or universal isolation	Available fault basis, fuse/withstand data and coordination study
Resettable fault interruption	Circuit breaker package	Protection settings, reclose logic, communication, or isolation	Declared ratings, relay/sensing basis, drawings and applicable evidence
Fault interruption plus automatic reclose	Complete recloser package	Suitability for every source, load, transformer, backfeed, or work practice	Fault zones, reclose/lockout philosophy, coordination and control evidence
Normal load switching	Declared load break switch function	Arbitrary short-circuit interruption	Making/breaking data and identified fault-clearing arrangement

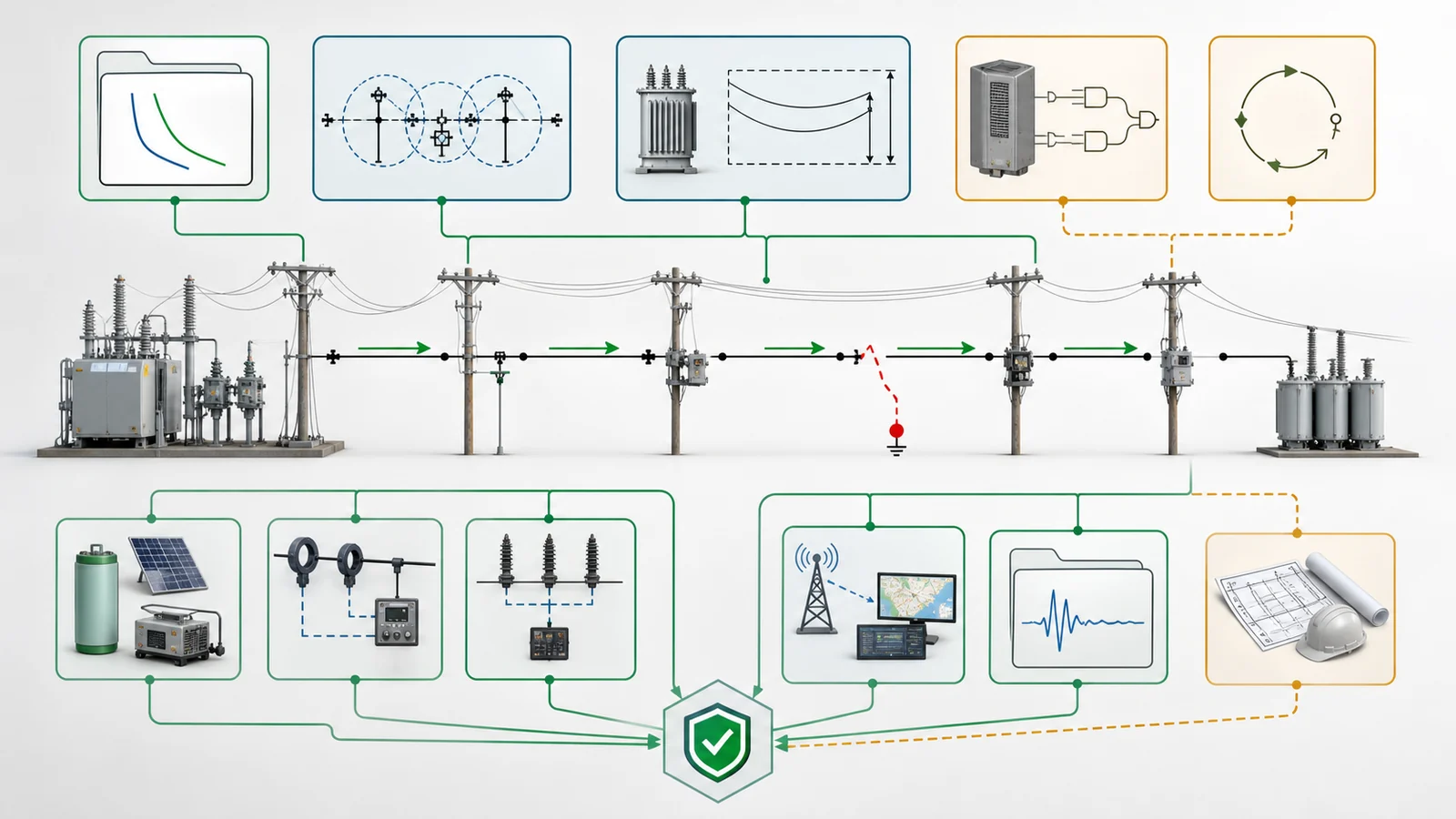

Automatic reclosing is a protection-system decision. Backfeed, distributed sources, non-reclosing loads, equipment withstand, worker-safety controls, and restoration policy can change whether it is permitted. The project protection coordination study should supply the settings and timing; this system matrix should not invent them.

Check Topology, Operation, Control, and Physical Interfaces

The same equipment class can fit one position and fail another. A radial feeder, ring/tie arrangement, multiple-source network, or feeder with distributed generation can change current direction, protection zones, normal state, and restoration logic. Treat topology as a controlled input rather than assuming a universal device hierarchy.

Operation and control also need their own line items. Confirm local and remote commands, automatic functions, control-power source, sensing, SCADA or DMS interfaces, time synchronization, event records, cybersecurity requirements where applicable, and the behavior expected when communication or auxiliary power is unavailable. Automation hardware cannot authorize a switching or protection duty that the complete assembly is not rated and configured to perform.

Physical and maintenance fit remains part of the decision. Review mounting, terminals, structures, conductor or cable interfaces, clearances, environment, access, indication visibility, operating mechanism, earthing points, lifting/removal space, and future extension. An electrically suitable device is not releasable if its interfaces or maintenance envelope cannot be verified at the selected position.

Future automation may justify spare I/O, sensing, communication provisions, or a documented upgrade path. It should not be used to claim that an unequipped device already provides protection, remote operation, or reclosing.

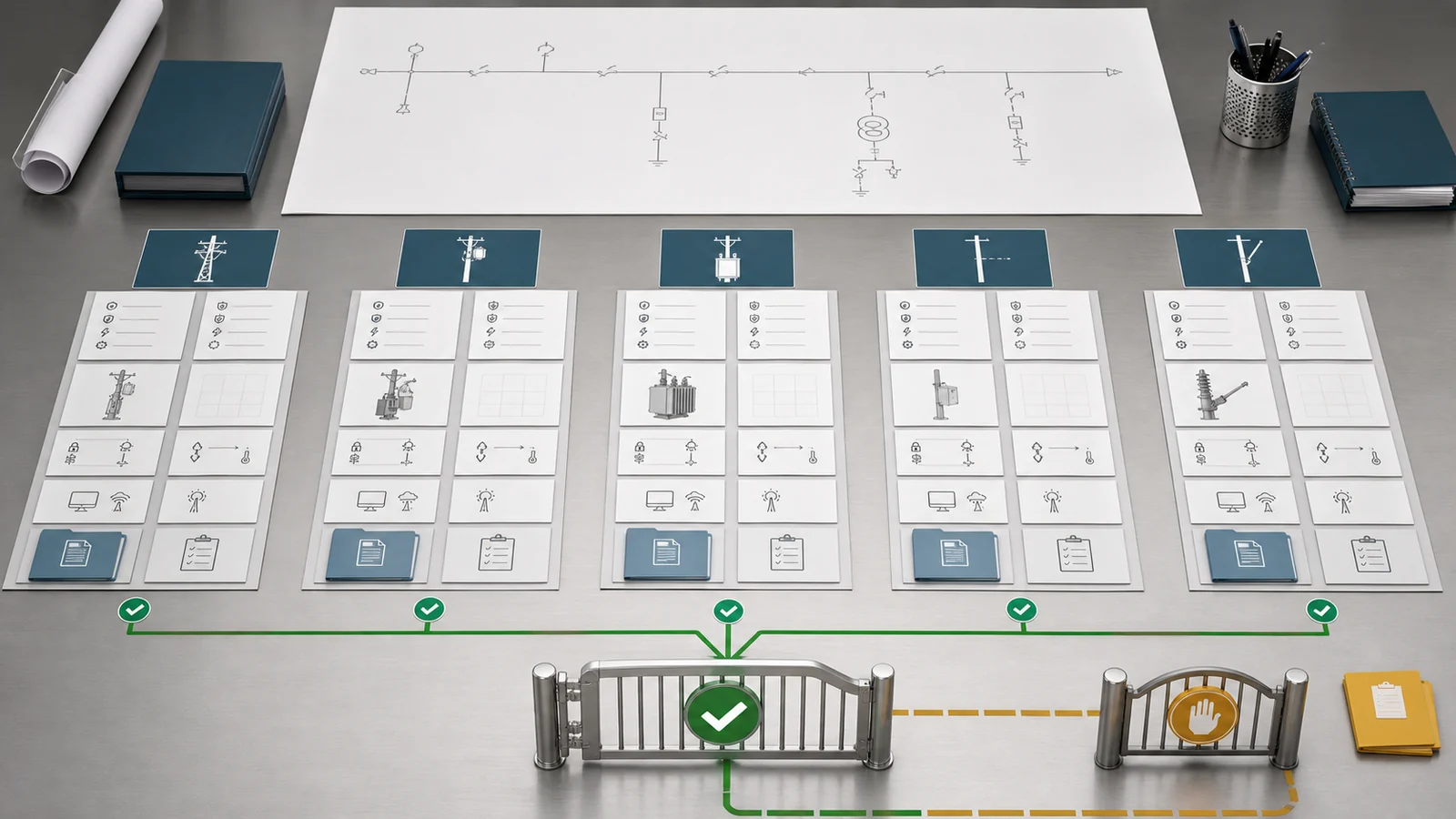

Normalize the RFQ Checklist and Technical Release Package

Issue one shared project basis to all bidders, then require a configuration-specific return for each feeder position.

Shared project basis:

• controlled one-line, feeder topology, position identifier, responsibility boundary, and normal state;
• system voltage/frequency/grounding basis, load profile, available fault current from the short-circuit study, and relevant transformer/conductor data;
• protection coordination study, protection zones, reclose/lockout philosophy, and non-reclosing constraints;
• isolation and earthing plan, operating philosophy, site switching constraints, and maintenance access;
• service conditions, mounting and terminal interfaces, control power, sensing, communication, and SCADA/DMS requirements; and
• project specification, adopted standards, document rules, and deviation process.

Per-position and per-offer return:

• declared functions of the complete offered assembly;
• making, breaking, interrupting, withstand, fuse, relay, or controller data as applicable;
• dimensional, terminal, mechanism, interlock, indication, isolation, earthing, control, and communication drawings;
• environmental, mechanical, access, and maintenance-interface data;
• applicability of design/type evidence and required routine records to the offered configuration; and
• a deviation register with owners, hold points, closure evidence, and technical-release status.

Keep manufacturer data, the project specification, the protection coordination study, and the operating philosophy as distinct evidence sources. One cannot silently replace another. Detailed fuse-topology comparison belongs to DSE-11, while detailed load break switch rating selection belongs to DSE-12.

Hold a Representative Feeder Decision Until Duty and Coordination Align

Representative engineering review, not a XIYA POWER customer project, utility case, factory case, field record, commissioned feeder, reliability result, or service result.

A radial overhead feeder has a source position, a normally closed mid-feeder point, a transformer lateral, a maintenance isolation point, and downstream loads with different continuity and reclosing constraints. An initial schedule assigns a breaker/recloser route at the source, a recloser at the mid-feeder point, a fuse cutout at the lateral, and a disconnector at the maintenance point before the controlled inputs are aligned.

The source and mid-feeder fault zones are not final. The fuse and upstream protection have no approved coordination record. The reclose philosophy does not yet separate permitted restoration from non-reclosing loads or possible backfeed. The maintenance point has no reconciled interruption, indication, earthing, and access package. Product names therefore create apparent completeness without proving the duty allocation.

Decision: hold final device allocation. Reconcile:

1. One-line, topology, position, normal state, and responsibility boundary.
2. Normal-current switching, fault interruption, protection, and isolation duties.
3. Available fault basis, equipment withstand, fuse/relay zones, and coordination.
4. Reclose/lockout policy, source and load constraints, sensing, and control power.
5. Interlocks, indication, earthing, communication, physical interfaces, and access.
6. Configuration-specific manufacturer evidence, deviations, owners, and release records.

No voltage, current, fault level, setting, supplier, location, price, test, outage, or reliability outcome is assigned. A project-specific review should begin with the controlled feeder one-line, duty map, fault and coordination basis, operating philosophy, service conditions, and offered equipment evidence.

Frequently Asked Questions

Can a disconnect switch open a loaded distribution feeder?

Only when the specific device has a declared switching capability covering that duty. A basic isolation function should not be treated as permission to interrupt normal load or fault current. Identify the suitable interrupting device and approved sequence from the project design and equipment evidence.

When should a project compare a fuse cutout with a recloser?

Compare them when a branch or transformer position needs overcurrent protection and the project must decide between fuse-based clearing with manual restoration and an interrupting/controller package with approved reclose or lockout behavior. Fault level, equipment withstand, coordination, continuity policy, backfeed, control, and maintenance all affect the decision.

Does a load break switch clear short-circuit current?

Not automatically. It performs only the making and breaking duties declared for the complete device. Fault clearing may require upstream protection or a tested switch-fuse or other interrupting assembly. Verify the offered configuration rather than inferring capability from the product name.

Why is automatic reclosing unsuitable for some feeder positions?

The feeder may include non-reclosing loads, backfeed or distributed sources, equipment with constrained repeated-fault withstand, or operating and worker-safety rules requiring manual restoration. The protection study and approved operating philosophy must determine whether reclosing is permitted and how lockout is handled.

Can one device provide protection, switching, and isolation?

Yes, a complete assembly may declare multiple functions. Release it only when the applicable ratings, interlocks, indication, isolation arrangement, protection/control configuration, and evidence cover every required function at that position. Do not add together capabilities from unrelated variants or individual components.

What data is needed before selecting distribution feeder equipment?

Provide the feeder one-line and topology, position and normal state, system and load basis, available fault current, protection zones and coordination, reclose/lockout philosophy, isolation and earthing plan, service conditions, physical interfaces, control power, sensing, communication, applicable standards, and configuration-specific manufacturer evidence.
